Xstrap 61018 1" x 10' 4PK Camouflage Ratchet Tie Down Straps 300lb SWL

PREV：No next articleNEXT：Xstrap 61022 1" x 10' 2PK Ratchet Tie Down Straps 300lb SWL
Buyer's Guide

Ratchet Tie Down Light Duty: Specs, Sizing & Where It's Actually Used

Light duty ratchet tie downs are the strap most people reach for first — small enough to keep in a glovebox, strong enough for everyday hauling. Before choosing a set, it helps to see exactly what "light duty" means in numbers, how it stacks up against heavier ratchet families, and which strap length actually fits the load in front of you.

At-a-Glance Specifications

Working Load Limit
300–600 lb
Standard light duty range
Webbing Width
1 inch
High-tenacity polyester
Common Lengths
6' – 15'
Endless & two-piece styles
Ratchet Body
Zinc Alloy / Steel
Zinc-plated or powder coated
Hook Options
S / J / Flat / Loop
Matched to anchor type
Packaging
1PK – 4PK
Retail card, poly bag, custom box

How Light Duty Compares to the Rest of the Ratchet Family

"Light duty" is one point on a wider strength curve. Seeing where it sits next to standard, heavy, and super duty ratchet tie downs makes it easier to decide whether one strap family covers a whole project, or whether two duty levels should be paired — light duty for the small stuff, a heavier strap for the anchor point.

0 2.5K 5K 7.5K lb Light Duty 300–600 lb Standard Duty 500–1,500 lb Heavy Duty 1,500–5,000 lb Super Duty 5,000–10,000+ lb

Bars show typical Working Load Limit (WLL) reference ranges by duty class, not a single fixed rating. Always confirm the exact WLL printed on the strap's sewn label before loading.

Duty Class Working Load Limit Webbing Width Typical Cargo
Light Duty 300–600 lb 1" Coolers, luggage, motorcycle covers, small gear
Standard Duty 500–1,500 lb 1"–1.5" ATV/UTV, appliances, small utility trailers
Heavy Duty 1,500–5,000 lb 2" Machinery, vehicles, flatbed cargo
Super Duty 5,000–10,000+ lb 3"–4" Heavy equipment, industrial loads

Where Light Duty Ratchet Tie Downs Get Used

Powersports

Motorcycle & Scooter Transport

Handles a bike cover, saddlebags, or a light trailer load without the bulk of a heavy duty strap.

Tip: pair with soft loops at the handlebars to avoid marking painted surfaces.

Off-Road

ATV & UTV Accessories

Secures gear racks, coolers, and spare parts riding along with the vehicle rather than the vehicle itself.

Tip: two straps at opposing angles resist side-to-side shift on rough trails.

Outdoor

Camping & Tent Setup

A ratchet mechanism gives tarps and canopy frames a controlled, even pull that a bungee can't match.

Tip: release the ratchet fully before storage so the webbing isn't kept under tension.

Roof Rack

Kayaks, Coolers & Roof Cargo

Light enough weight and profile to run over roof rack crossbars without adding drag or rattle.

Tip: add a bow and stern line for anything over 6 feet long, not the ratchet strap alone.

Moving

Home Moves & Storage

Keeps boxes, dollies, and single furniture pieces from sliding inside a van or trailer during a move.

Tip: use a moving blanket under the hook end to protect finished wood surfaces.

Utility

Small Trailer & Yard Loads

Mulch bags, lawn equipment, and garden supplies stay put across short, low-speed hauls.

Tip: re-check tension after the first mile — loose cargo settles once it's moving.

Matching Strap Length to Cargo Size

Length is the detail most buyers get wrong — too short and the ratchet can't take up slack, too long and excess webbing becomes a hazard around moving parts.

Cargo Type Approx. Weight Recommended Length Suggested Quantity
Small gear bag / cooler Under 20 lb 1" x 6' 1–2 straps
Bicycle / lawn equipment 20–80 lb 1" x 8' 2 straps
Motorcycle cover / small trailer load 80–200 lb 1" x 10' 2–4 straps
Kayak / canoe on roof rack Varies by length 1" x 12'–15' 2 straps + bow/stern line
Light furniture / moving boxes Varies by piece 1" x 10'–15' 3–4 straps

Frequently Asked Questions

What is the working load limit of a light duty ratchet tie down?

Most light duty ratchet tie downs are rated between 300 and 600 lb WLL, with break strength roughly three times that figure. The exact rating is always printed on the strap's sewn label.

How many light duty straps are needed for a typical load?

As a general guideline, use at least two straps for anything with meaningful surface area, positioned at opposing angles, and add a third or fourth strap once combined cargo weight approaches the strap's WLL.

Can light duty ratchet straps be used on a roof rack?

Yes, for lightweight items such as coolers, soft luggage, or a kayak paired with bow and stern lines. Heavier roof cargo, such as rooftop cargo boxes fully loaded, is better matched to a standard duty strap.

Is a light duty ratchet tie down the same as a cambuckle strap?

No. Both are common in light duty applications, but a ratchet uses a geared mechanism for high, controlled tension, while a cambuckle relies on hand tension only and suits lighter, less critical loads.

Are custom colors, printing, or packaging available for light duty straps?

Yes. Webbing color, hook coating, ratchet powder-coat color, and retail packaging can be produced to a specific brand standard, with production handled across in-house factory lines.

Manufactured Under a Full-Process Quality System

Every light duty ratchet tie down in this range is produced and tested in-house, from raw webbing to the finished, labeled strap.

ISO 9001 Certified SMETA Audited C-TPAT Inspected GS & Patent Certified 20+ Years in Cargo Control 8,000+ sqm Production Space
  • Describe
  • Specification
  • Contact us

  • 1. Product name:

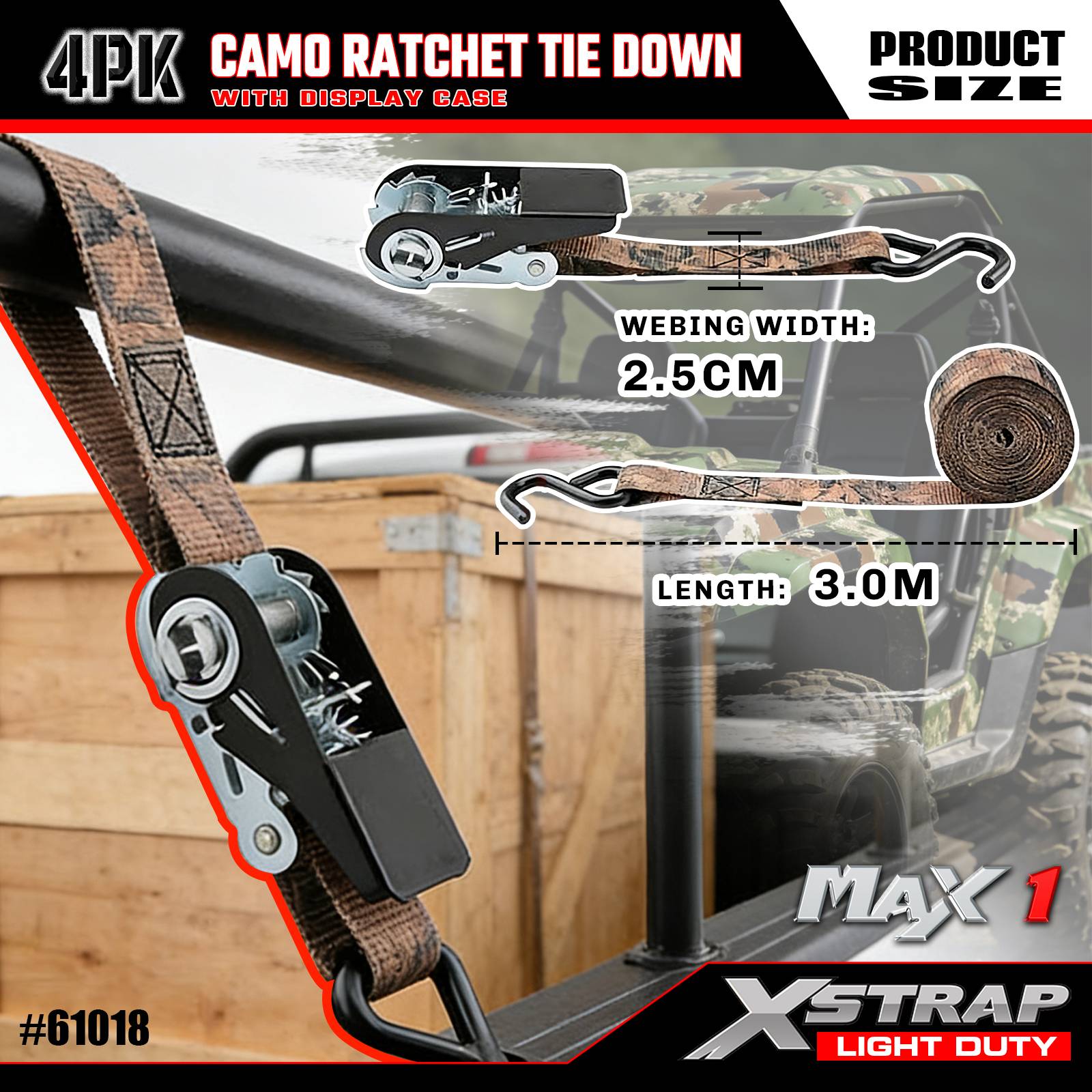

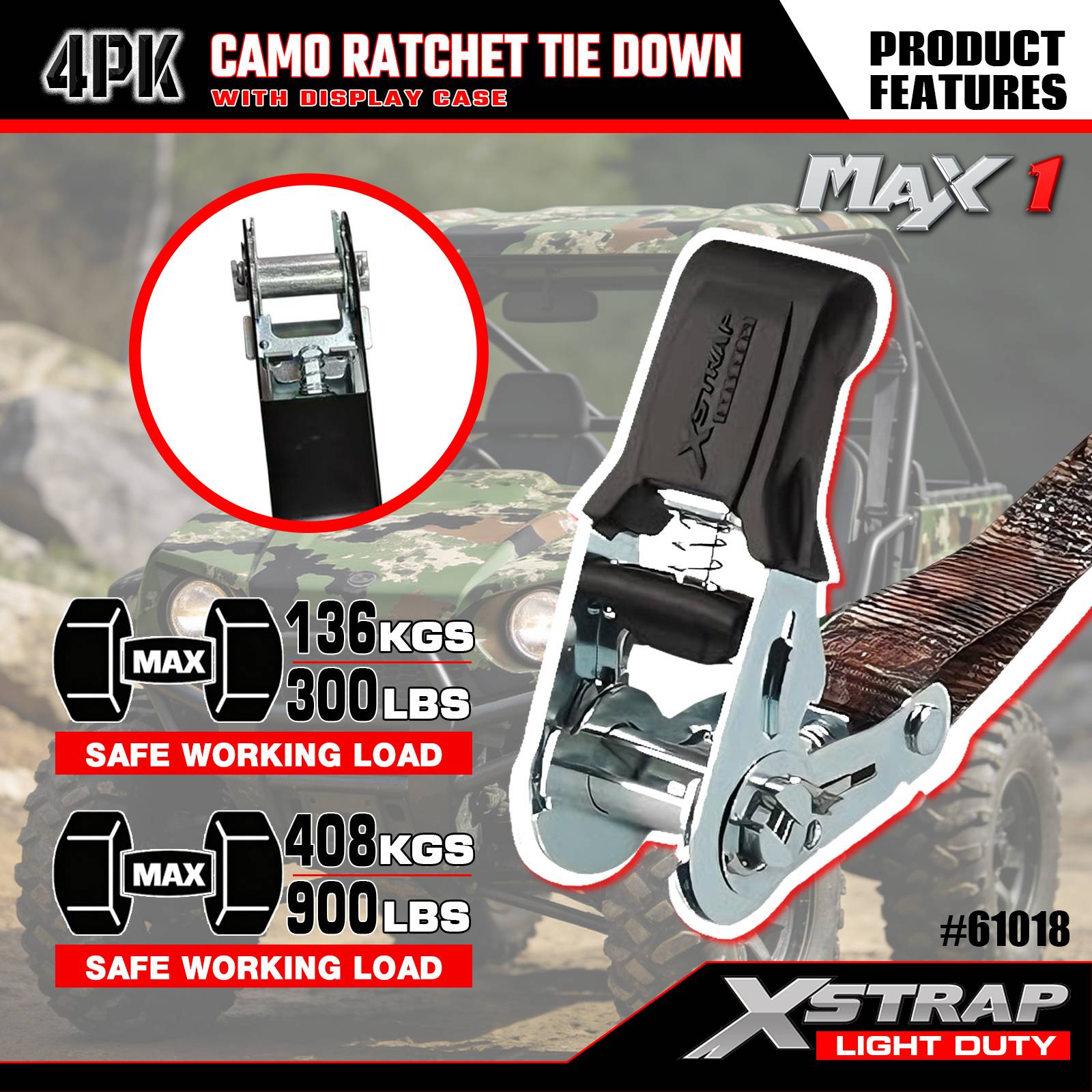

    The Xstrap Camouflage Ratchet Tie Down is 1 in x 10 ft, the safe work load is 300lbs and the breaking strength is 900lbs.



    2. Product introduction:

    This camouflage ratchet tie down is an ideal choice for securing light-duty loads, suitable for various scenarios requiring safe fixation.

    It is durable, reliable, easy to operate and store. Compared with ordinary tie downs, it has more advantages in protection and practicality: the rubber-coated S-hooks can effectively prevent scratches on cargo and anchor points, while the extra stitching design greatly enhances the overall strength of the tie down. The non-slip rubber handle and quick-release function make the operation effortless, even during prolonged use. It is a reliable helper for daily cargo fixation and transportation.



    3. Product specification:

    Product name

    1" camouflage ratchet tie down

    Size

    1"×10'

    Type

    Light Duty

    Capacity

    300lbs/900lbs

    Color

    Camouflage

    Usage

    Light-duty cargo fixation and transportation



    4. About the item:

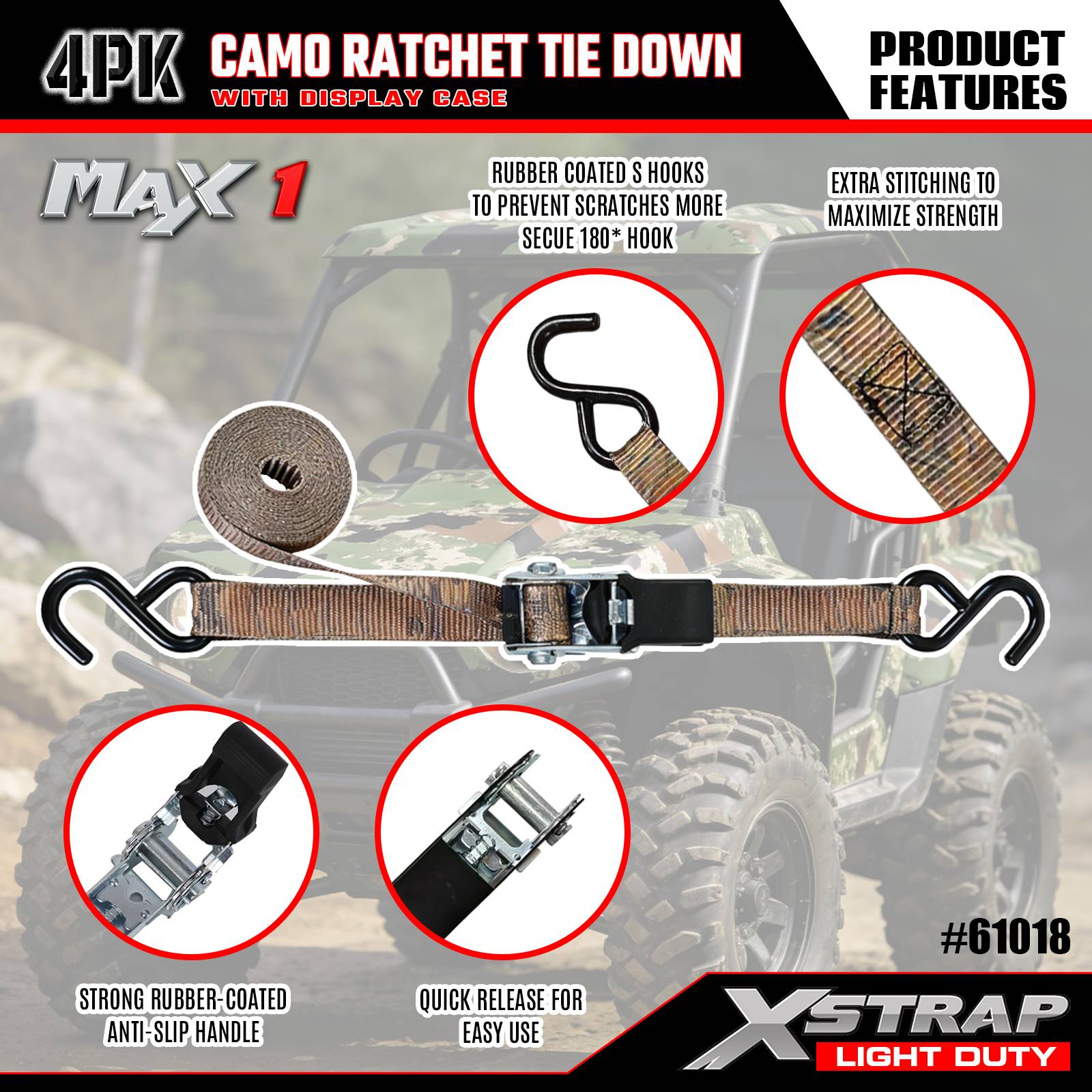

    • Durable & Reliable: Features extra stitching to maximize strength, ensuring stable performance in light-duty load scenarios.

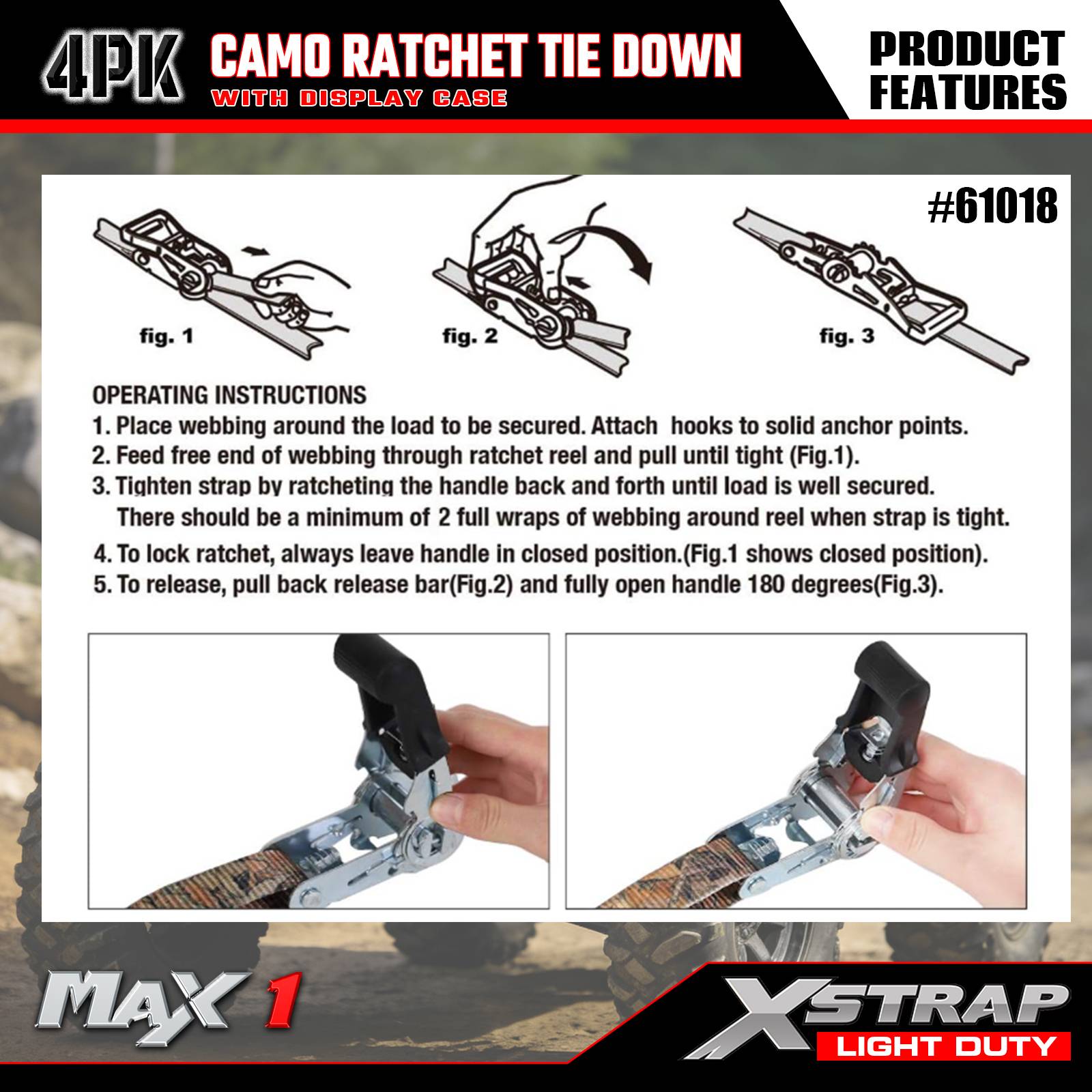

    • Easy Operation: Comes with clear 5-step operating instructions. From wrapping the webbing around the load, attaching hooks, feeding the webbing through the ratchet reel, tightening via back-and-forth ratcheting (with a minimum of 2 full wraps around the reel when tight), to locking (keeping the handle closed) and releasing (pulling the release bar and opening the handle 180 degrees), the whole process is simple and easy to follow.
    • Safety & Protection: Equipped with rubber-coated S-hooks that prevent scratches on cargo and anchor points, and the handle’s closed locking design avoids accidental loosening during transportation. The strong rubber-coated anti-slip handle provides a firm hold, reducing hand fatigue during use.
    • Easy Storage: Packaged with a plastic box, facilitating organized storage and preventing webbing tangling or hook damage, thus extending the product’s service life.

    5. Packaging information:

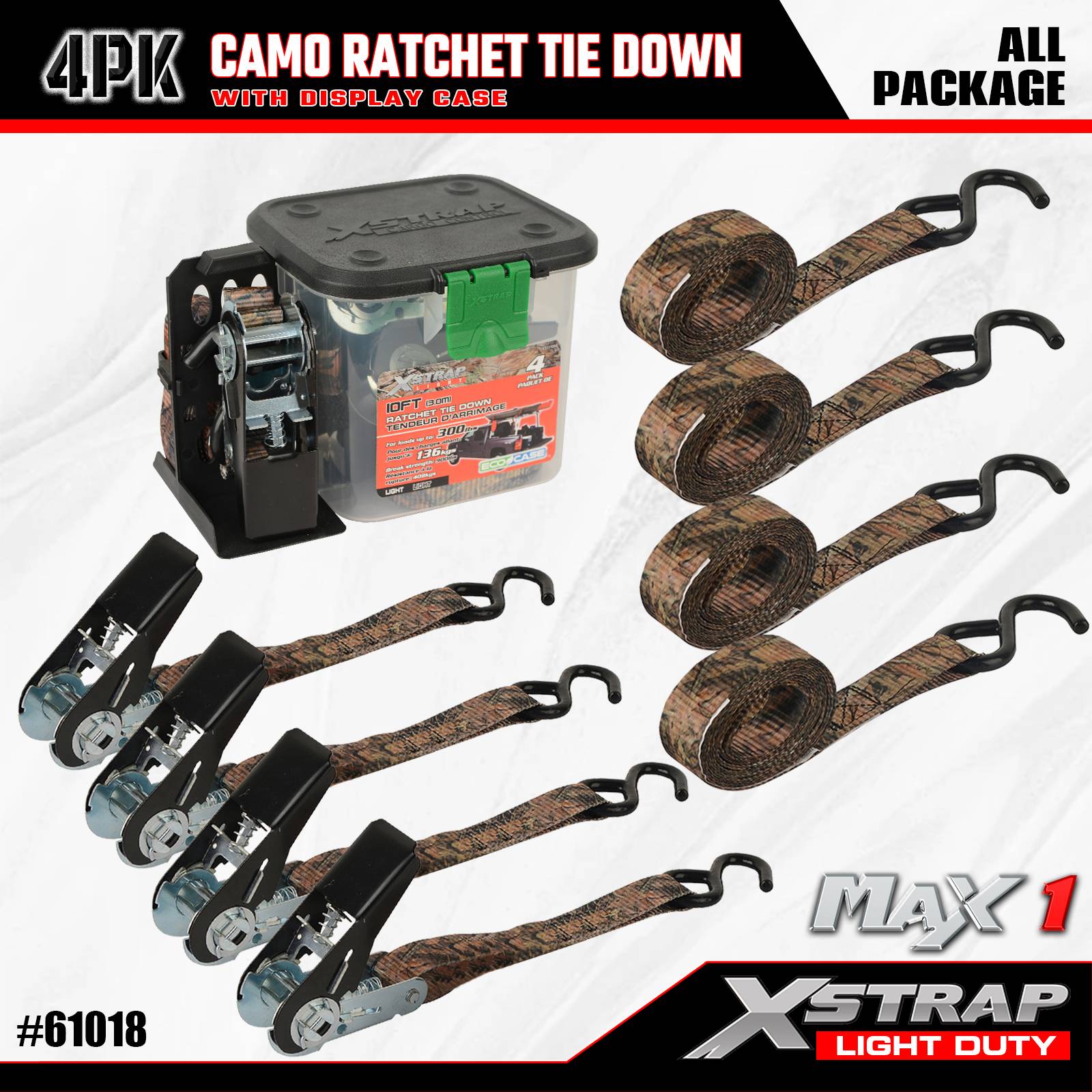

    The product is available in a 4-piece set (4PK) with a plastic box. The packaging is neat and convenient for storage and display.
