Name: Xstrap 66111 1.5' x 16ft T-Handle Ratchet Tie Down Straps 1,100lb SWL
Rating: 5 (99 reviews)

Xstrap 66111 T-Handle Ratchet Strap — Key Numbers

SWL 1,100lbs

Width 1.5in

Length 16ft

Handle T-Type

Production Flow for the T-Handle Ratchet Assembly

Webbing extrusion — 1.5 inch polyester webbing is woven and edge sealed to stop fraying under repeated ratchet tension.

Handle forming — the T-shaped handle bar is bent and welded to the ratchet body, extending leverage length compared to a stub handle.

Gear assembly — the ratchet gear teeth are cut and heat treated, then paired with a pawl that locks tension without slipping back.

Pull test — finished units are tension pulled on a bench rig to confirm the ratchet holds at rated SWL before packing.

Why a T-Handle Changes How Much Force You Need

Standard Short Handle

A shorter lever arm means more hand force is needed to reach the same webbing tension. On cold mornings or with gloves on, that extra effort is where hands tend to slip.

Works fine for lighter cargo where full rated tension is rarely needed.

T-Handle Design

The longer T-shaped bar increases leverage, so the same webbing tension is reached with noticeably less hand force — useful when cinching down heavier equipment loads.

The wider grip also spreads pressure across the palm instead of a single point.

Handle Force Required as Tension Builds

Illustrates relative hand force needed to reach rated tension. T-handle leverage keeps required grip force lower as the strap approaches its rated working load.

Working Load by Webbing Width

500 lbs 1 in

1,100 lbs 1.5 in

830 lbs 2 in — light duty ref.

Reference SWL by common webbing width, shown for scale comparison only — actual rated capacity depends on webbing grade, stitching pattern and hardware used.

Matching Strap Count to Cargo Type

Cargo Type	Suggested Straps	Tie-Down Point
Riding lawn mower / small equipment	2 straps	Front and rear frame anchors
ATV / UTV	4 straps	All four corners
Palletized or crated goods	2 to 4 straps	Pallet base or crate rails
Building materials, lumber bundles	2 to 3 straps	Across the bundle at even spacing

Quick Answers

What does 1,100lb SWL mean on this strap? SWL stands for safe working load — the tension level the strap is rated to hold repeatedly during normal use, separate from its higher breaking point.
Is the T-handle removable for storage? The handle is fixed to the ratchet body as one welded assembly, so it does not detach, keeping the mechanism sealed against dirt ingress.
Can two of these straps be linked for a longer reach? Linking is not recommended, since the connection point becomes the new weakest link in the tie-down system.
Does SMK produce this strap under a private label? Yes, handle color, webbing color and packaging can be adjusted for factory partners supplying their own artwork files.

Xstrap 1.5" x 16ft T-Handle Ratchet Tie Down Straps 1,100lb SWL

1.Product name:

The Xstrap T-Handle Ratchet Tie Down is 1.5 inch x 16ft, the safe work load is 1,100lbs and the breaking strength is 3,300lbs.

2.Product introduction:

The T-Handle Ratchet Tie Down straps are widely used for cargo fixation and transportation. It uses high-strength polyester webbing, T-shaped ratchet handle, and double J hook design to achieve effortless tension through the principle of ratchet straps. It can replace traditional hemp rope, chain, and steel wire.

3.Product specification:

Product name	1-1/2” T-handle ratchet tie down
Size	1-1/2”×16’
Webbing Material	100% high-strength industrial grade polyester
Capacity	1100lbs/3300lbs
Color	Dark yellow
Usage	Cargo Control

4. About the item:

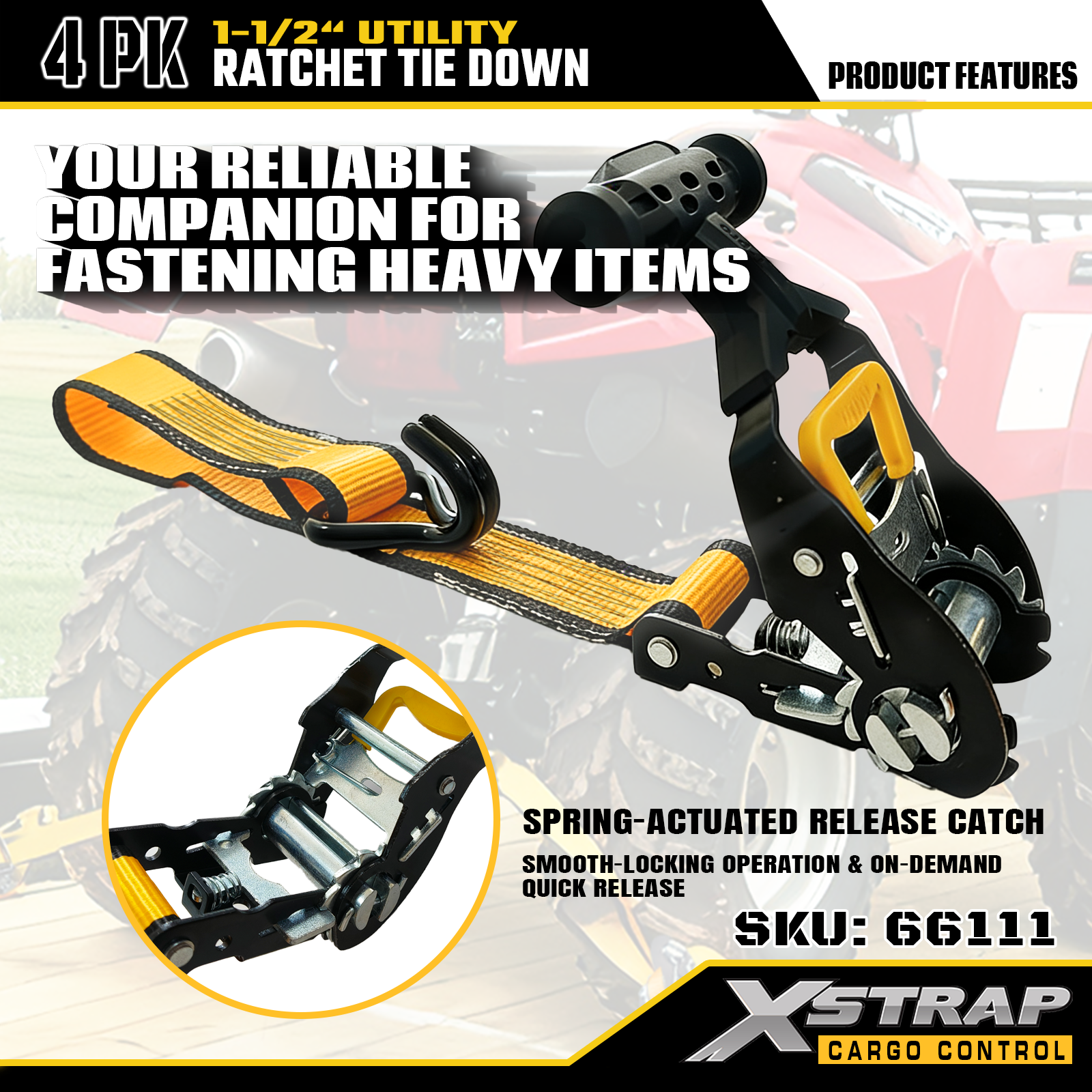

Ratchet handle: T-shaped steel handle which is covered with rubber, It can provide a good grip and also save effort during operation.

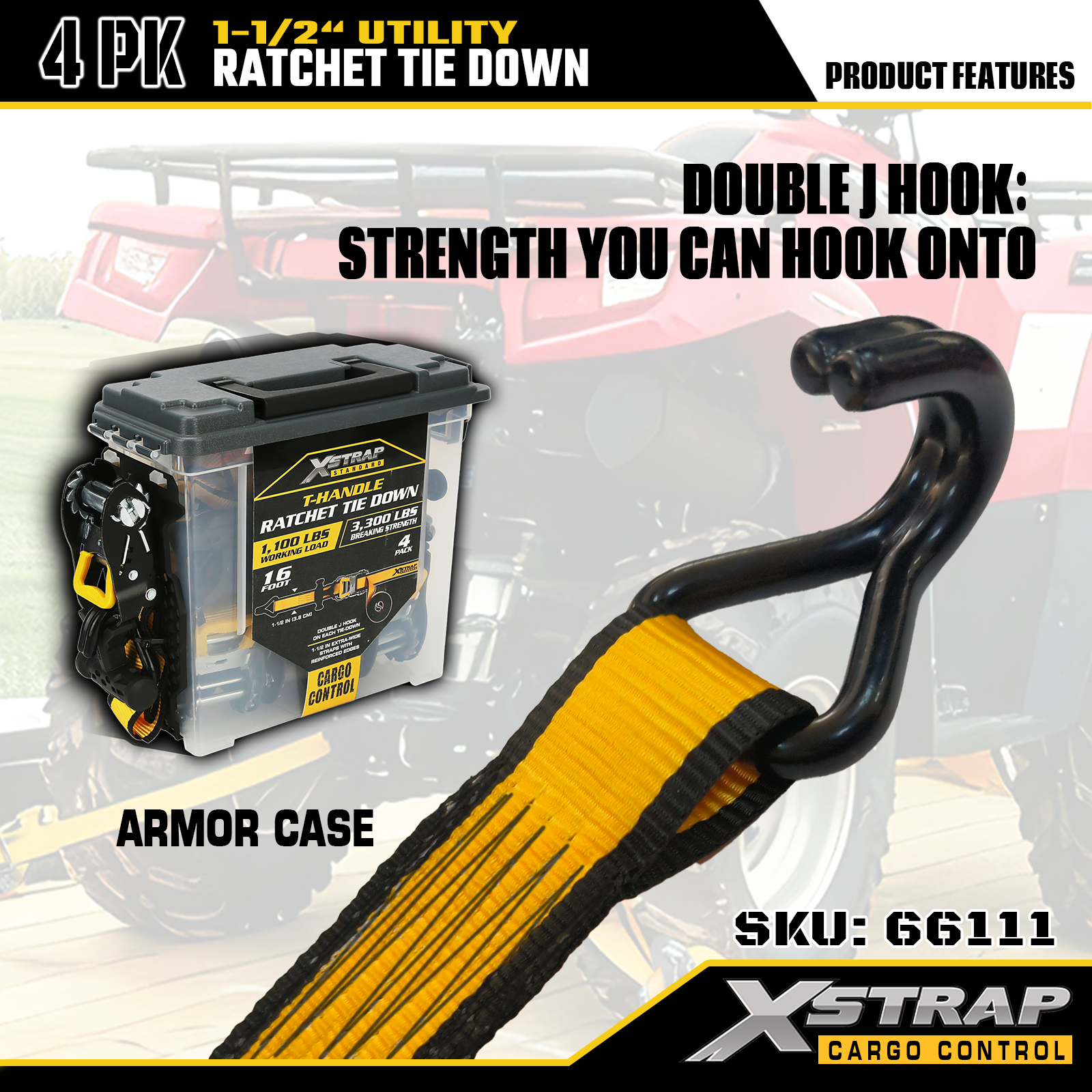

End fittings: Double J hooks which are professionally tested after heat treatment, they can help to secure the cargo firmly.
Webbing: 1-1/2”38mm extra wide straps with reinforced edges. The webbing is made of high quality industrial grade polyester. And the webbing color can be customized.
Customized Logo: we can do OEM for you. The logo can be printed on the straps.

5.Packaging information:

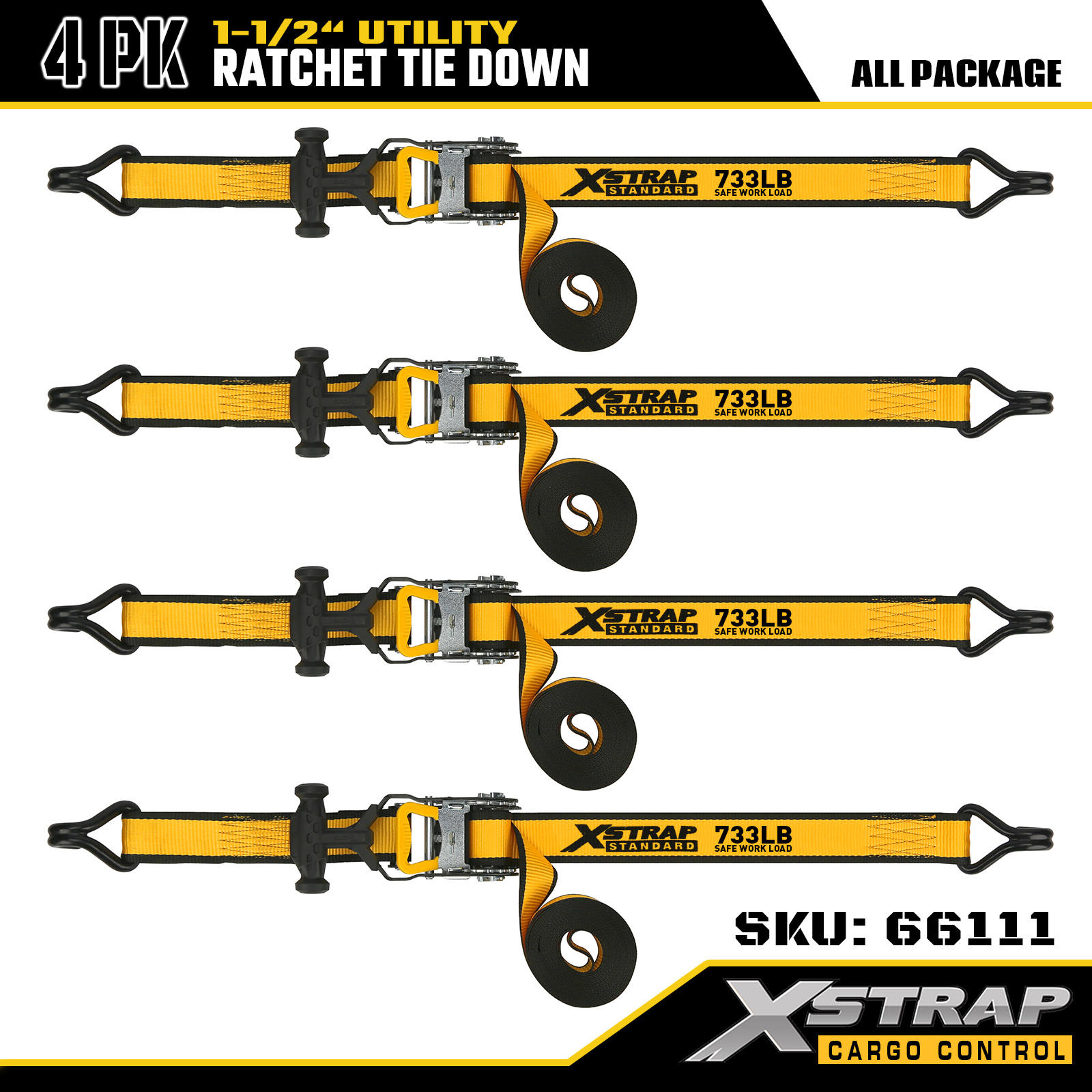

We can retail and wholesale. We also provide 4pk packaging with plastic box.
