Xstrap 61789 Retractable Ratchet Tie Down Straps 1 in x 10 ft Secure Tie-Downs for Motorcycle Jetski Kayak Breaking Strength 1,500LBS/680KG

PREV：No next articleNEXT：Xstrap 66111 1.5" x 16ft T-Handle Ratchet Tie Down Straps 1,100lb SWL

Xstrap 61789 Retractable Set — Engineering Snapshot

The numbers below summarize what actually matters when picking a tie-down for motorcycles, jetskis and roof racks: how much it can hold, how it compares to older strap styles, and how consistently the retraction mechanism performs after repeated use.

1,500lbs Breaking Strength
500lbs Working Load Limit

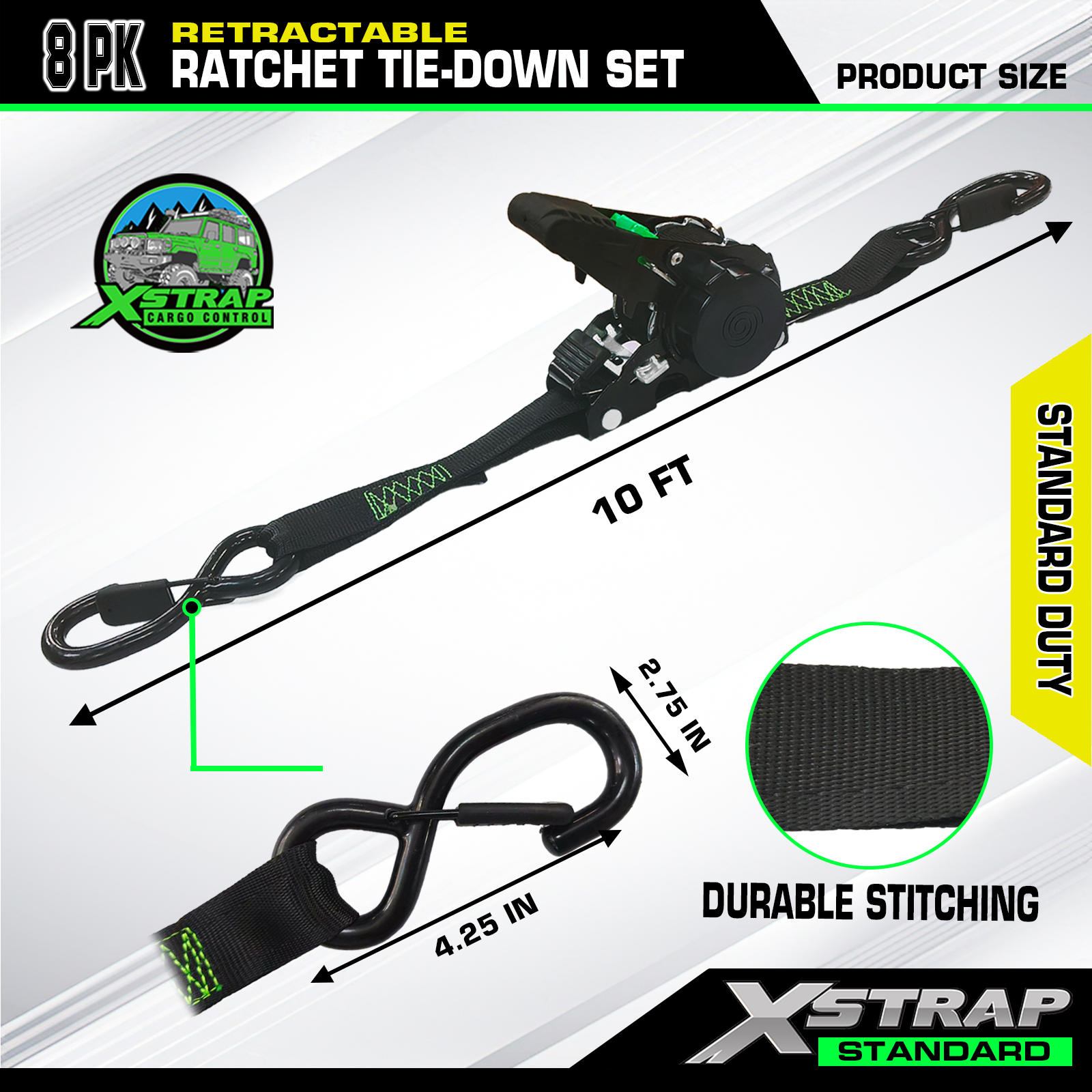

10ft Webbing Length
4+4 Straps & Soft Loops
1in Webbing Width

From Webbing Loom to Sealed Set: The Build Sequence

01

Webbing Weaving

Polyester yarn is woven at high tension, then sample pulled to confirm breaking strength clears the 1,500 lbs rating before moving to assembly.

02

Housing Stamping

The black electrophoresis ratchet housing is stamped and coated for corrosion resistance, standing up to saltwater exposure during jetski use.

03

Spring Calibration

Every retraction spring is tuned to a controlled tension so webbing spools back evenly at the push of a button, without snapping or jamming.

04

Batch Packaging QC

Finished 4-pack sets are checked piece by piece for hook coating and retraction smoothness before sealing into the storage bag and color box.

Retraction Spring Consistency Over Repeated Use

A common failure point on low cost retractable straps is spring fatigue — the pull-back force weakens after heavy cycling. The reference curve below tracks tension retention across repeated pull-and-release cycles during internal testing.

100% 95% 90% 85% 80% 0 200 400 600 800 1000

Vertical axis: tension retained relative to first cycle. Horizontal axis: number of pull-and-retract cycles. Curve reflects an internal test reference, not a per-unit warranty figure.

Breaking Strength by Tie-Down Type

0 400 800 1200 Bungee 300 Cam Buckle 800 Standard 1,200 61789 1,500

Values in lbs. Reference ranges for common strap categories versus the rated breaking strength of the Xstrap 61789 retractable set.

Safety Margin: Working Load vs. Breaking Strength

33% of break strength

The 500 lbs working load limit sits at roughly one third of the 1,500 lbs breaking strength. That built-in gap is intentional — it absorbs sudden jolts from braking, uneven roads and cargo shift without pushing the webbing anywhere near its failure point.

Retractable Ratchet vs. Traditional Ratchet vs. Cam Buckle

Strap Type Tightening Method Storage After Use Setup Time Best Suited For
Xstrap 61789 Retractable Ratchet handle, push button retract Self coils into housing Fastest, no loose webbing Motorcycle, jetski, kayak, ATV
Traditional Ratchet Strap Manual ratchet handle Hand rolled and tied off Moderate, tail needs winding Flatbed and general cargo
Cam Buckle Strap Pull through cam buckle Loose coil, no housing Fast, lower clamping force Light cargo, moving boxes

Where Riders Put the 61789 Set to Work

1

Motorcycle Transport

Soft loops wrap handlebars or frame rails without scratching paint, while the ratchet strap pulls the bike snug against a trailer tie-down point.

2

PWC and Jetski

Coated S hooks resist saltwater corrosion, and retracting webbing keeps slack from dragging in the water when loading onto a trailer bunk.

3

Kayak and Canoe Racks

The 1 inch webbing sits flat against roof rack crossbars, and auto retract stops excess strap from flapping at highway speed.

4

ATV and UTV Loading

Four straps and four soft loops anchor an ATV at all four tie-down points in one trip, without borrowing straps from another vehicle.

Common Questions on the 61789 Strap Set

What is the difference between the 500 lbs and 1,500 lbs rating?

500 lbs is the working load limit for safe recurring use. 1,500 lbs is the breaking strength, the tested failure point kept well above the working load as a safety margin.

Do I need the soft loops if my trailer already has tie-down rings?

Soft loops mainly create anchor points where none exist, such as a handlebar or roof rack bar. If solid rings are already present, the ratchet hook can attach directly to them.

Can the retraction mechanism jam if pulled out at an angle?

The housing is built for straight line retraction. Pulling at a sharp side angle can cause uneven spooling, so feeding the webbing back roughly straight keeps it smooth.

Is private label packaging available for this strap set?

Yes. The storage bag, color box artwork and strap color combinations can be adjusted for partners wanting a private label version, based on artwork files supplied to the factory team.

  • Describe
  • Specification
  • Contact us
    1. Product Introduction:

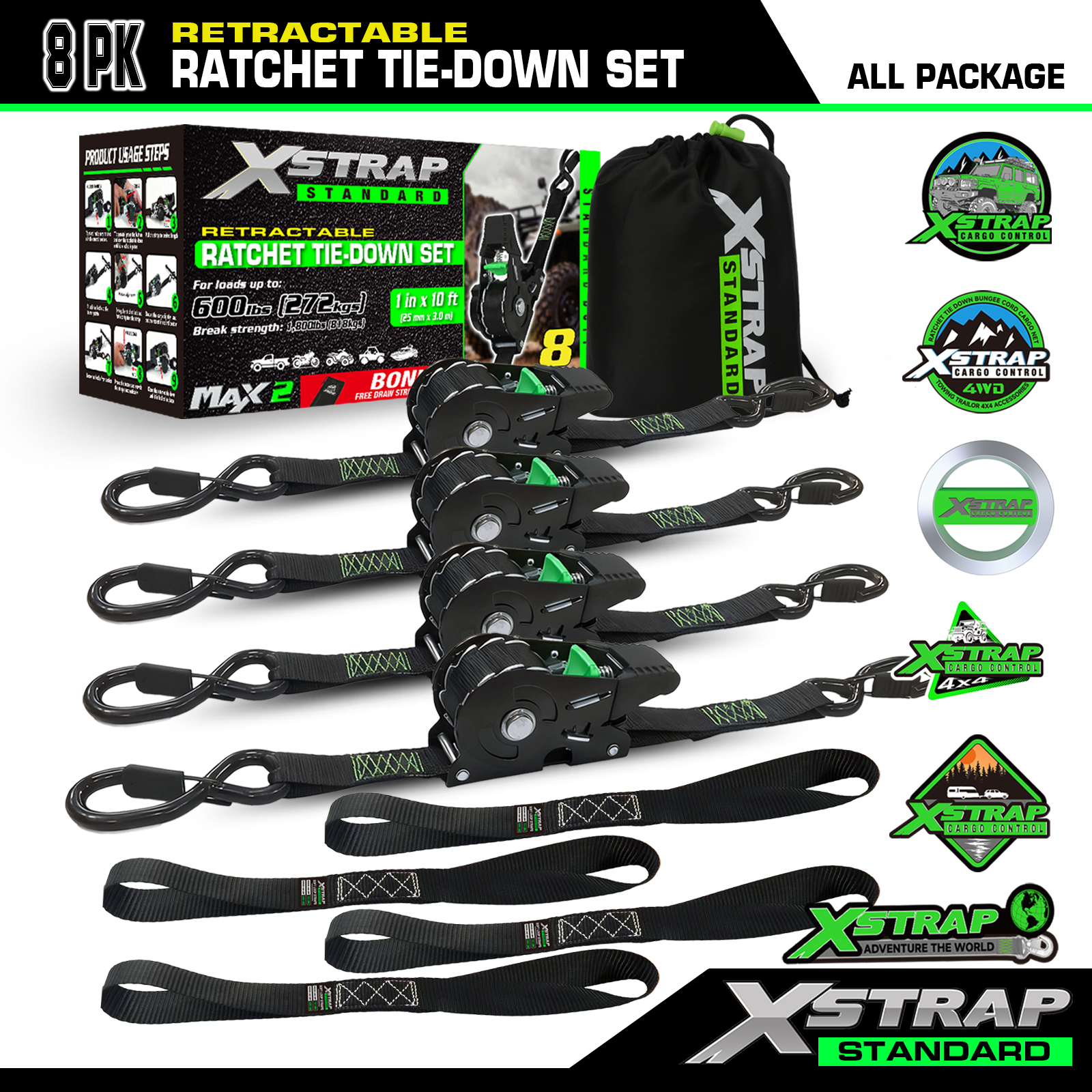

    This product set includes:

    4pk retractable ratchet strap

    4Pk soft loop

    1pk storage bag

    1pk color box



    1. Product details:

    We are a manufacturer of tie down straps in China which has more than 20 years experience. Now we also have factories in Cambodia which helps us to have more competitive power.

    • High quality retractable ratchet tie down straps- the working load is 500lbs and the limited load is 1500lbs. The straps will be tested before they are shipped out. So we can ensure your cargo is secure during transportation.

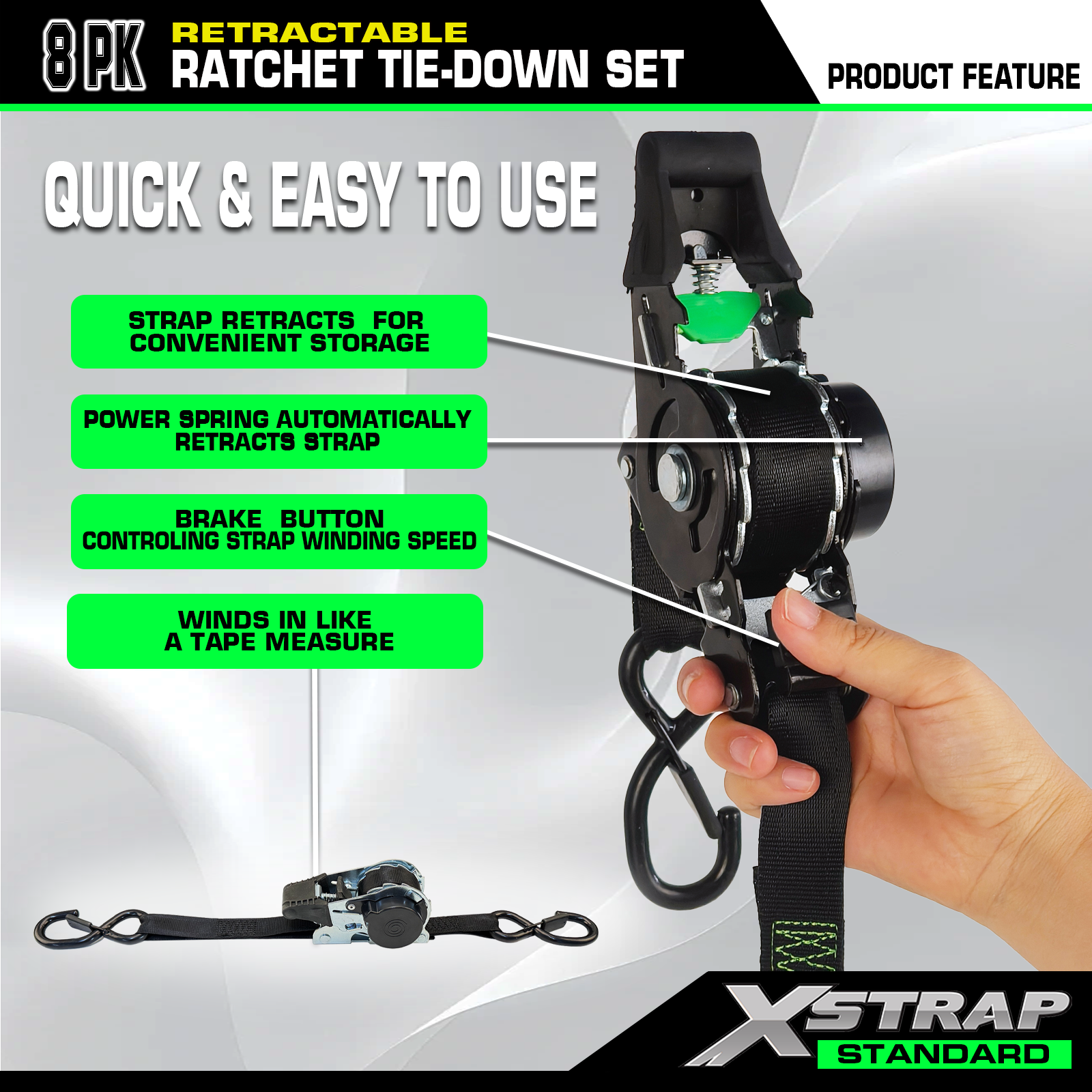

    • Auto retracting ratchet strap--you can easily retract the straps by pushing a button. It is very easy to use and can save you lots of time.

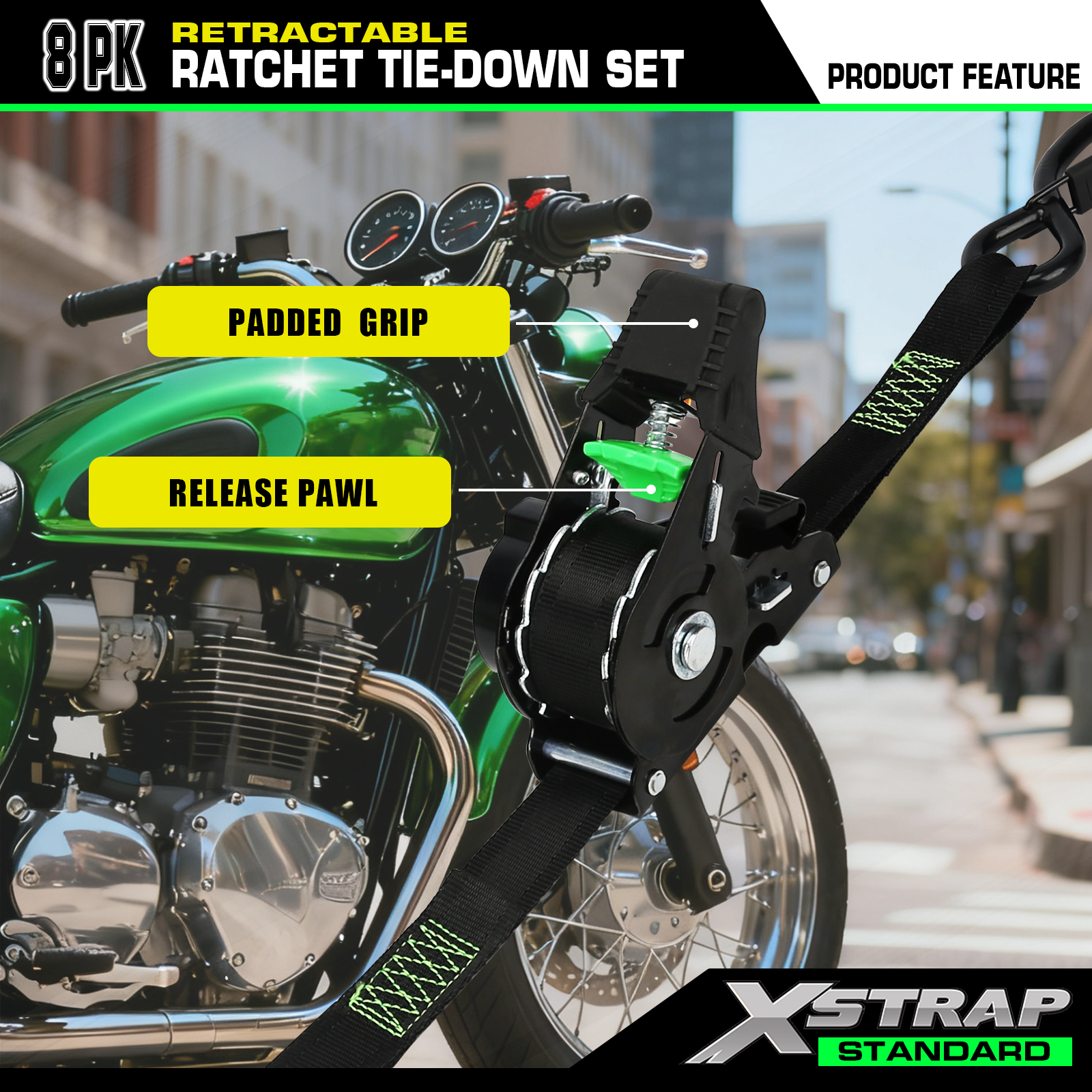

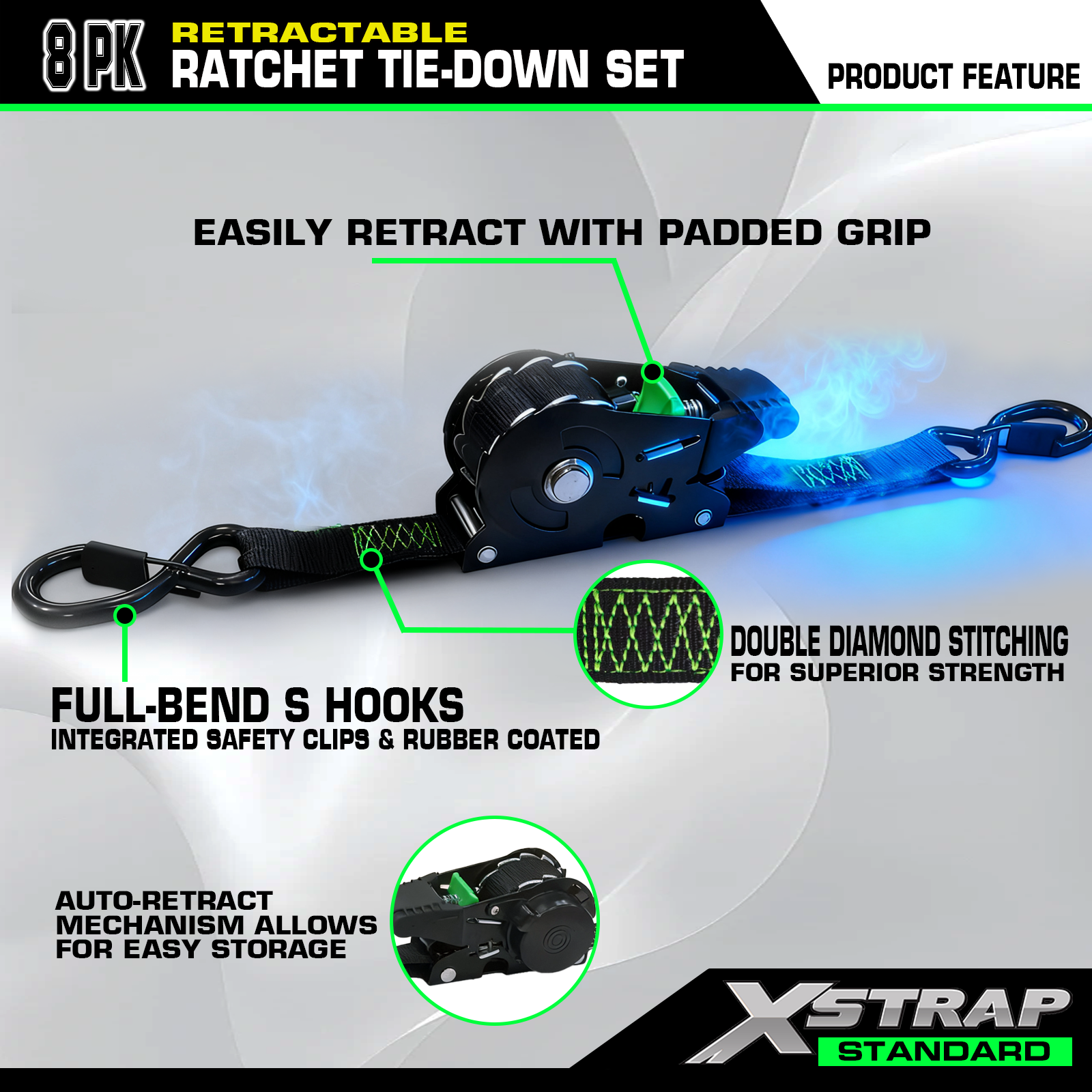

    • High quality materials-- equipped with black electrophoresis ratchet, an ergonomic padded handle, and coated safety s hooks.

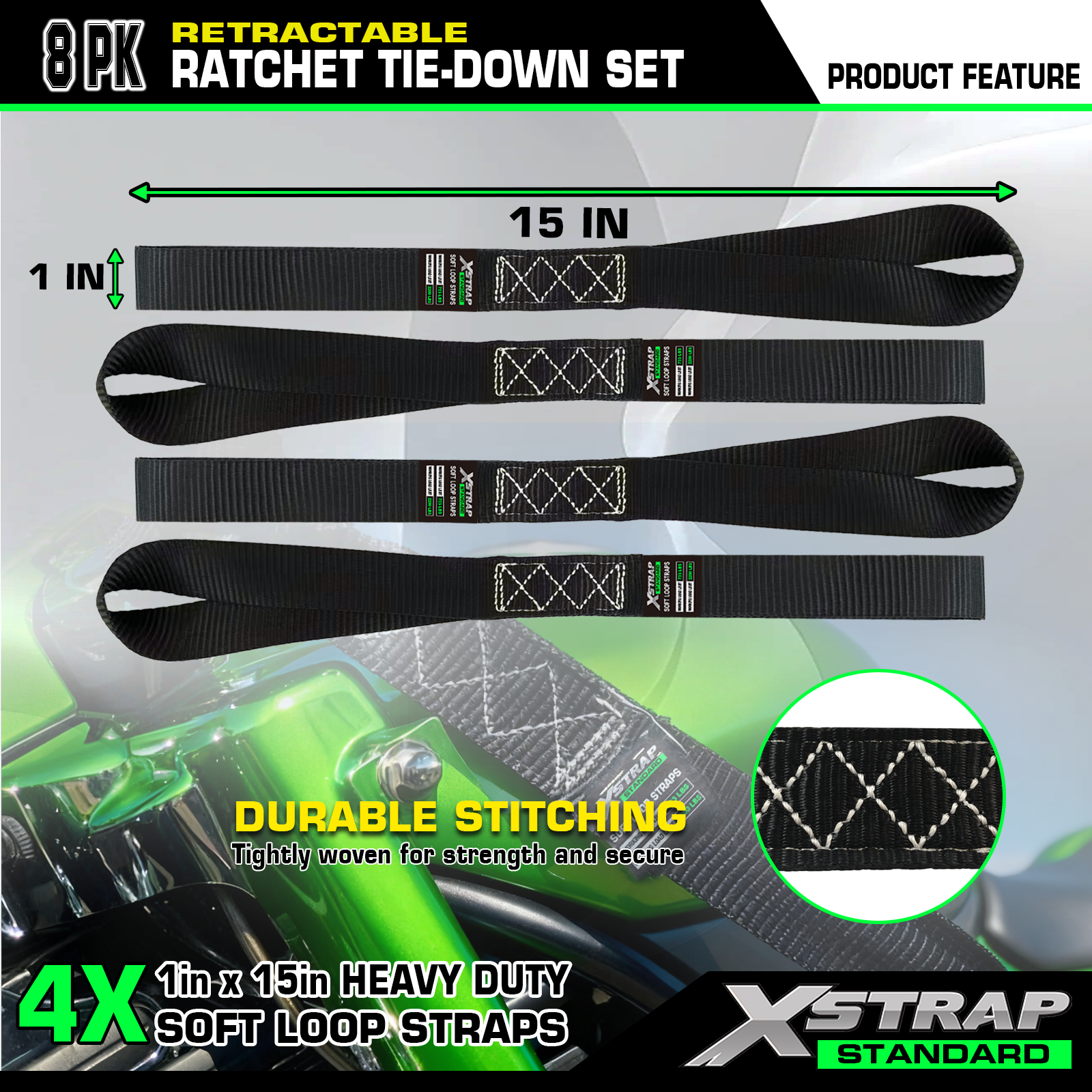

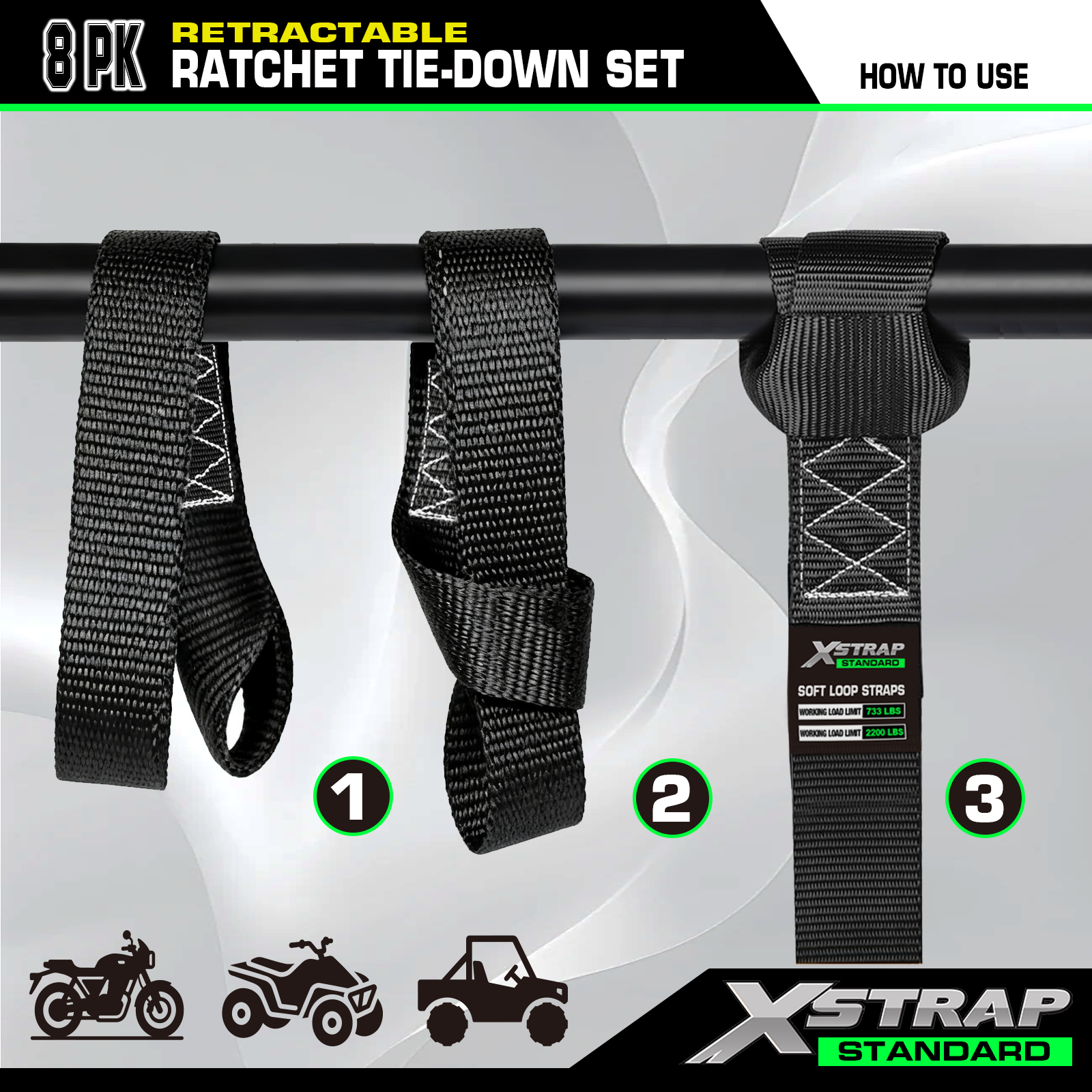

    • Includes 4 soft loop tie downs-- the soft loops can help to create anchor points on roof racks, truck beds, handlebars. So you can use our retractable ratchet straps in many scenarios.



    1. Products Application:

    The retractable ratchet strap features a built-in automatic retraction mechanism, allowing the strap to retract smoothly back into its housing after use. This not only keeps the strap neat and protected, but also significantly reduces preparation and cleanup time. The 10ft polyester webbing provides strong tension and dependable strength for motorcycles, ATVs, bicycles, UTVs. The ergonomic ratchet handle is comfortable to operate, offering better grip and less effort when tightening the load.



    1. Product advantages:

    There are some advantages of the retractable ratchet straps compared to traditional ratchet straps.

    A retractable ratchet strap can save time and ensure efficiency in securing cargo. With the easy to use retractable design,these straps streamline the strapping process, allowing you to quickly and effortlessly secure your items.

    Compared to the traditional ratchet straps require manual winding and untangling, auto retractable ratchet straps offer a significant advantage in terms of time saving and overall efficiency.



    1. OEM/ODM Supported:

    We have a strong design team that can support OEM and ODM. Welcome to negotiate and cooperate.
