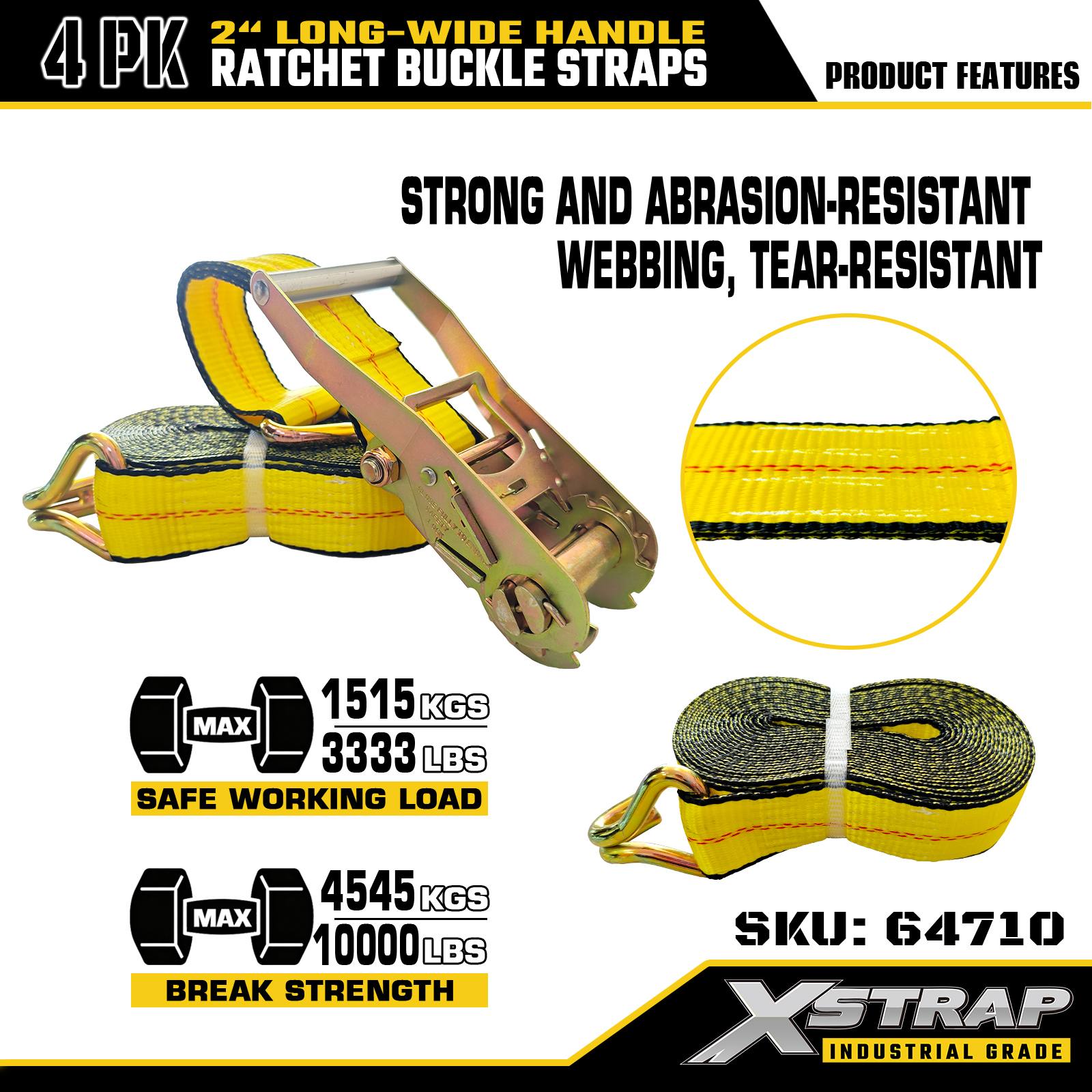

Xstrap 64710 2" 27ft Long Wide Handle Ratchet Buckle Straps with Wire Hooks Break Strength 10,000 lbs (4-Pack)

Manufacturer Detail Sheet

XSTRAP 64710 — 2" Wide Handle Ratchet Strap, 27ft, Wire Hooks

The 64710 pairs a wider ratchet handle with a 2 inch high-tenacity webbing to cut down on hand fatigue during long tie-down runs on flatbeds, box trucks and equipment trailers. Each set ships as four straps with wire hooks, giving fleet crews and independent haulers a matched set that rigs the same way on every corner of the load rather than mixing mismatched hardware.

Break Strength

10,000lbs

Working Load Limit

3,335lbs

Strap Length

27ft

Pack Quantity

4pcs / set

Where This Strap Gets Used

Flatbed & Open Trailer Loads

Lumber, steel coil, machinery and palletized crates ride on open decks where a 10,000 lbs break strength gives enough margin to run multiple straps per load without over-tensioning any single point.

Moving Trucks & Storage Units

The wide handle keeps grip pressure lower when a crew is tightening a dozen straps in one loading session, which matters more on moving day than on a single occasional haul.

Boat, ATV & Utility Trailers

Wire hooks sit flush against trailer rails and D-rings, so the strap holds its angle instead of twisting loose on rough tow roads.

Warehouse & Pallet Consolidation

A matched 4-pack lets a warehouse crew standardize on one strap length for repeat pallet runs instead of tracking mixed lengths from different orders.

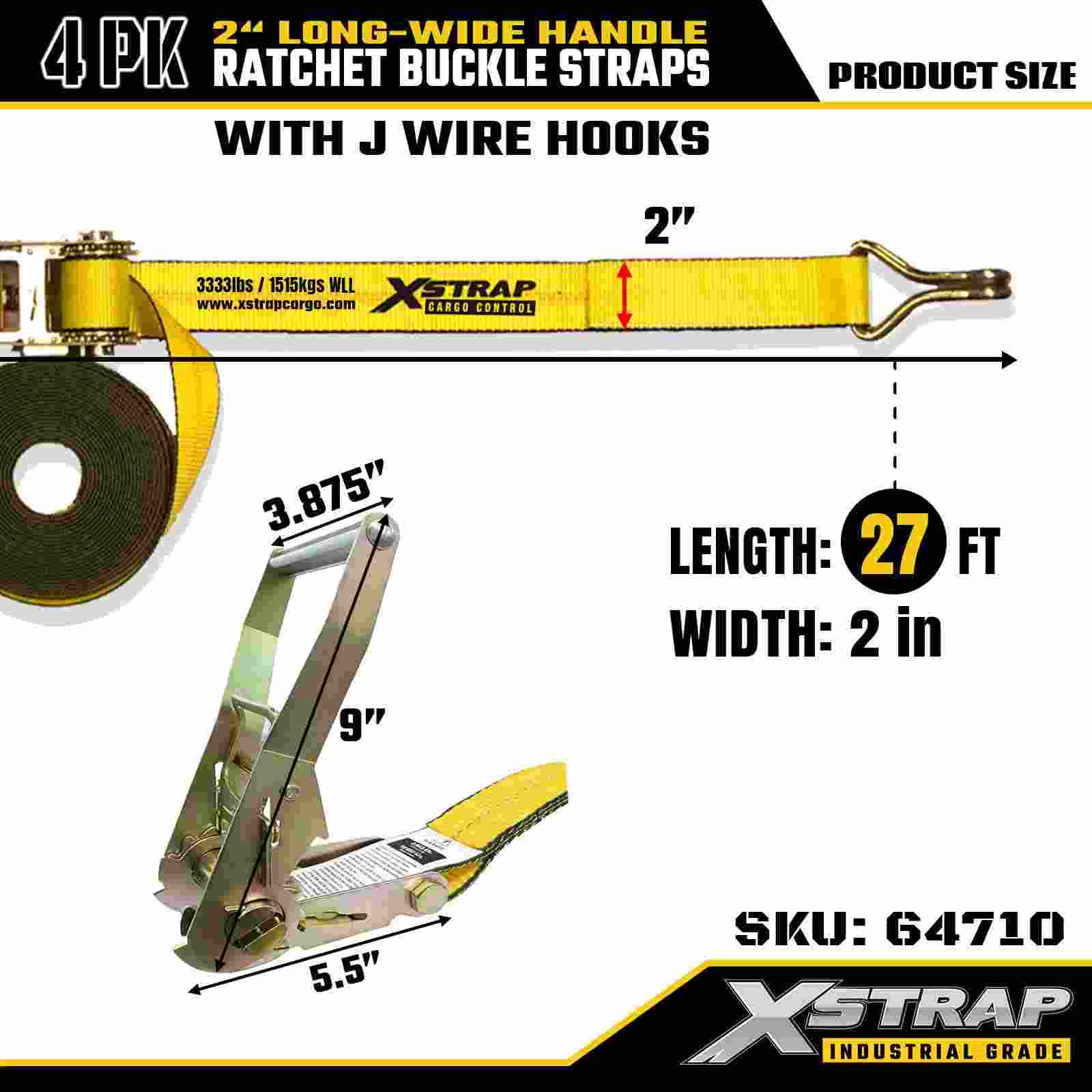

Specification Item Detail
Webbing Width 2 in / 50 mm
Overall Length 27 ft / 8.2 m
Break Strength 10,000 lbs / 4,536 kg
Working Load Limit 3,335 lbs / 1,512 kg
Hook Type Wire Hook
Handle Type Wide Ergonomic Handle
Webbing Material High-Tenacity Polyester
Buckle Material Zinc-Plated Steel
Pack Quantity 4 Pieces per Set
Factory Certification ISO 9001 Certified / SMETA Audited Facility

How This Batch Is Made & Checked

The 64710 is built on the same production line SMK uses for its own XSTRAP-branded straps, so the process below is specific to this SKU rather than a general company description.

01

Webbing Weaving & Edge Finishing

Polyester yarn is woven to the 2 inch width on in-house looms, then heat-sealed at both edges to stop fraying before the strap ever leaves the factory floor.

02

Buckle Stamping & Zinc Plating

The ratchet housing is stamped from cold-rolled steel, then zinc-plated to resist rust during outdoor storage and repeated highway exposure.

03

Batch Pull Testing

A sample from every production batch is pulled to failure on an in-house test rig to confirm the 10,000 lbs break strength before the batch is released to packing.

Common Questions About This Strap

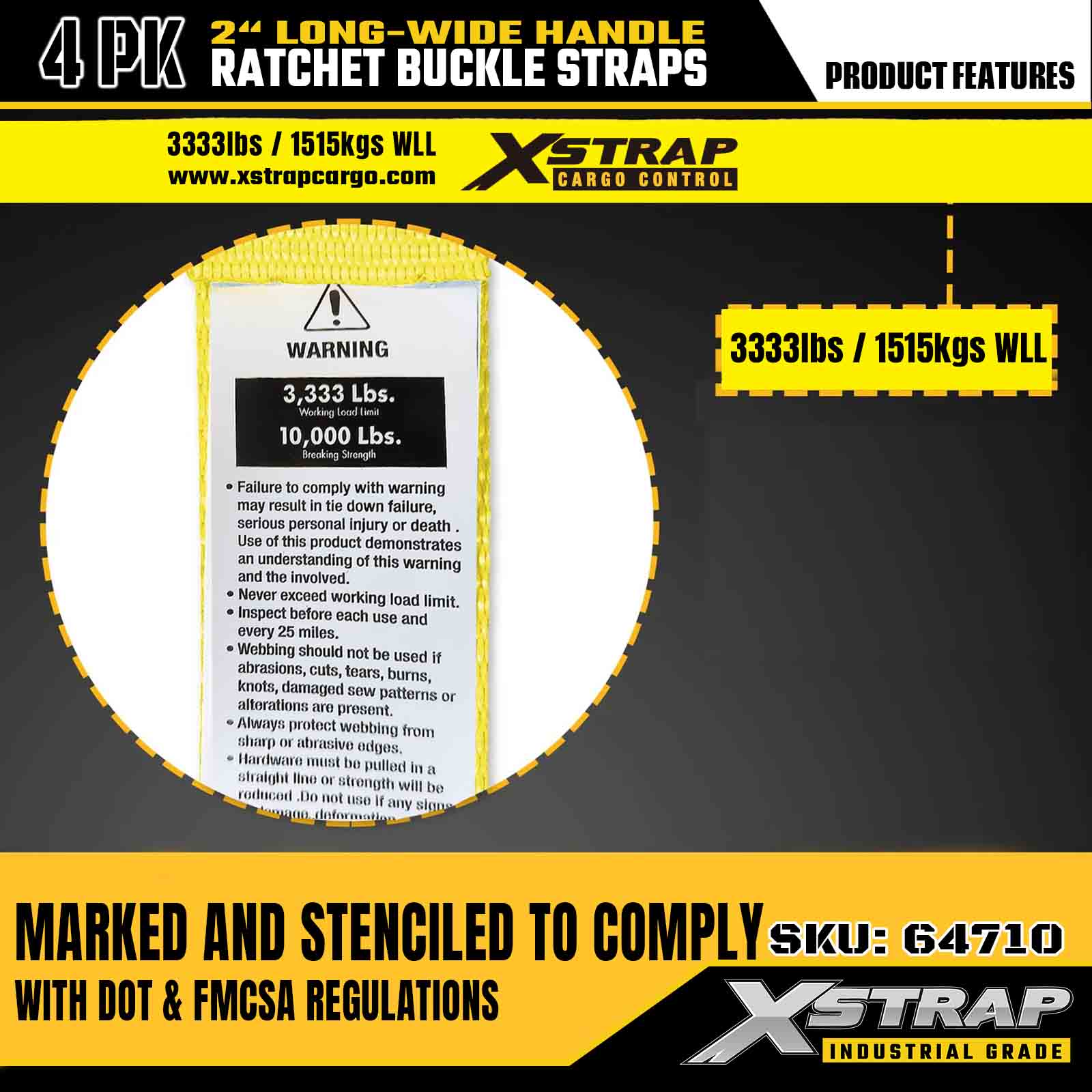

Q.What is the difference between break strength and working load limit?

Break strength is the load at which the strap fails in testing; working load limit is the maximum load it should carry in normal use, set at roughly one third of break strength. For the 64710, that is 10,000 lbs break strength against a 3,335 lbs working load limit.

Q.Can the wire hooks be swapped for a different hook type?

Yes. The 64710 ships with wire hooks as standard, and flat hooks, S-hooks or double J hooks can be produced on request for orders that need a different anchor point.

Q.Is 27 ft long enough for a full-width flatbed load?

27 ft comfortably reaches across most 8 ft to 8.5 ft wide flatbed loads with enough slack for two or three wraps around the ratchet spool, which is what keeps the strap from slipping under vibration.

Q.How should the strap be released after a long haul?

Fold the release arm fully open, then feed the webbing back through the spool by hand rather than yanking it, since a sudden pull under tension is the most common cause of pinched fingers.

Care & Storage

  • Rinse off road salt and mud, then air-dry the webbing fully before coiling and storing it.
  • Keep straps out of direct sunlight for long stretches, since UV exposure weakens polyester webbing over time.
  • Check the webbing edges for fraying or cuts before each use; retire a strap once wear reaches the stitched edge.
  • Store the ratchet in the closed position to keep tension off the spring when the strap is not in use.

Customization Available

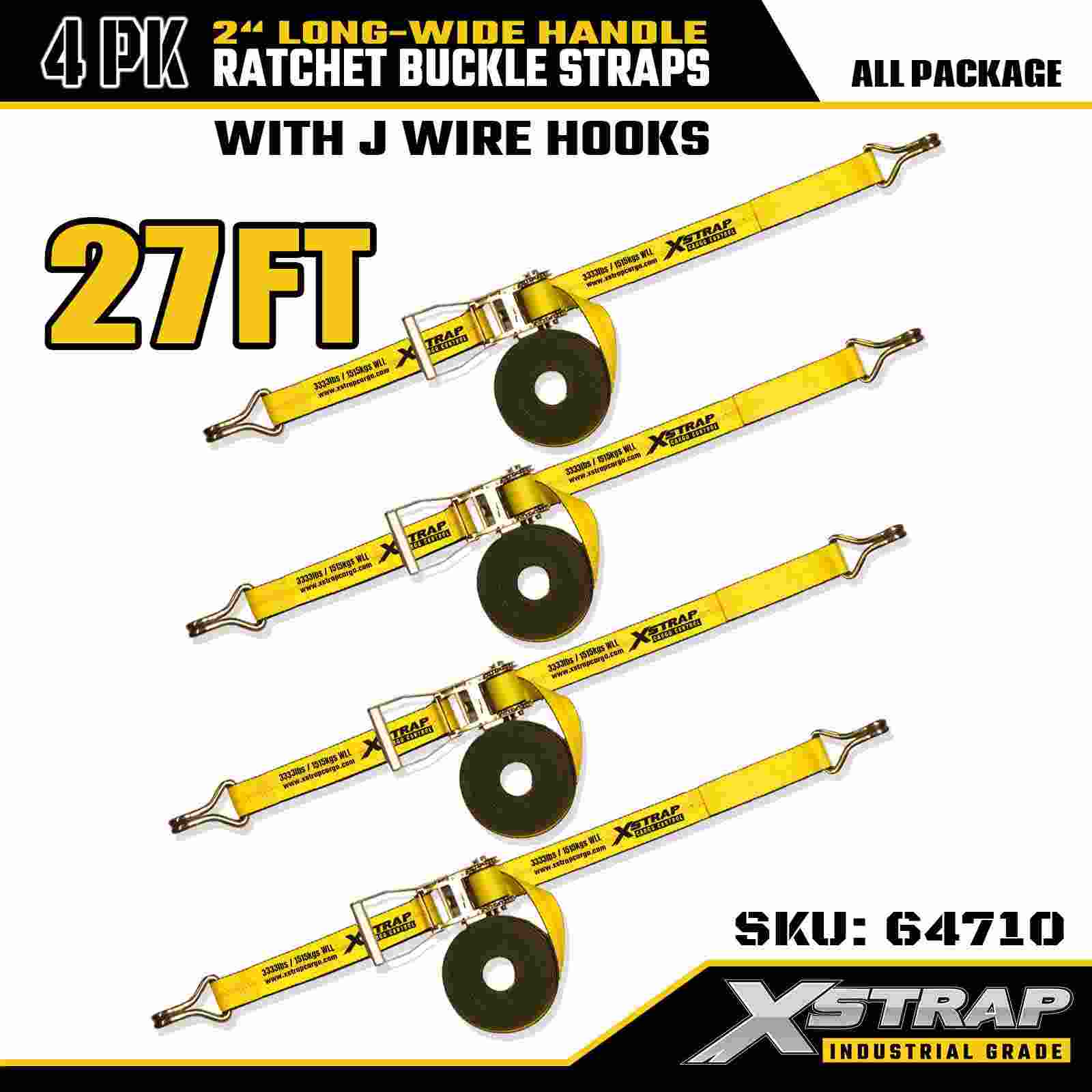

  • Strap length adjustable from 6 ft to 40 ft on the same webbing and buckle spec
  • Hook style options: wire hook, flat hook, S-hook, or double J hook
  • Webbing color and printed logo for private label packaging
  • Custom pack quantities for fleet operators and rental yards
  • 1. Product Name:

    Xstrap 64710 Cargo Control Ratchet Straps 2" x 27ft (4-Pack) – Wire Hooks, 10,000 lbs Rated Capacity, Durable Tie Down for Equipment Transport



    2. Product Introduction:

    Xstrap heavy-duty ratchet straps are designed to secure oversized and heavy cargo with confidence. Featuring reinforced wire hooks and an extended long wide handle, these straps combine strength, durability, and ease of use. The ergonomic ratchet handle provides superior leverage, making tightening and releasing smoother and less labor-intensive. Built from premium polyester webbing, they deliver reliable performance in trucks, trailers, and industrial transport applications.



    3. Product Specification:

    Product Name

    2” Heavy Duty Ratchet Tie Down with Long Wide Handle

    Size

    2" × 27ft

    Hook Type

    Wire Hooks

    Handle

    Long Wide Handle

    Capacity

    WLL 3,333 lbs / Break Strength 10,000 lbs

    Packaging

    4-Pack

    Usage

    Cargo Securement, Transport, Industrial & Construction Applications

    4. About this item:

    • Heavy Duty Wire Hook Straps: Reinforced wire hooks provide secure fastening to anchor points, ensuring stability during transport.

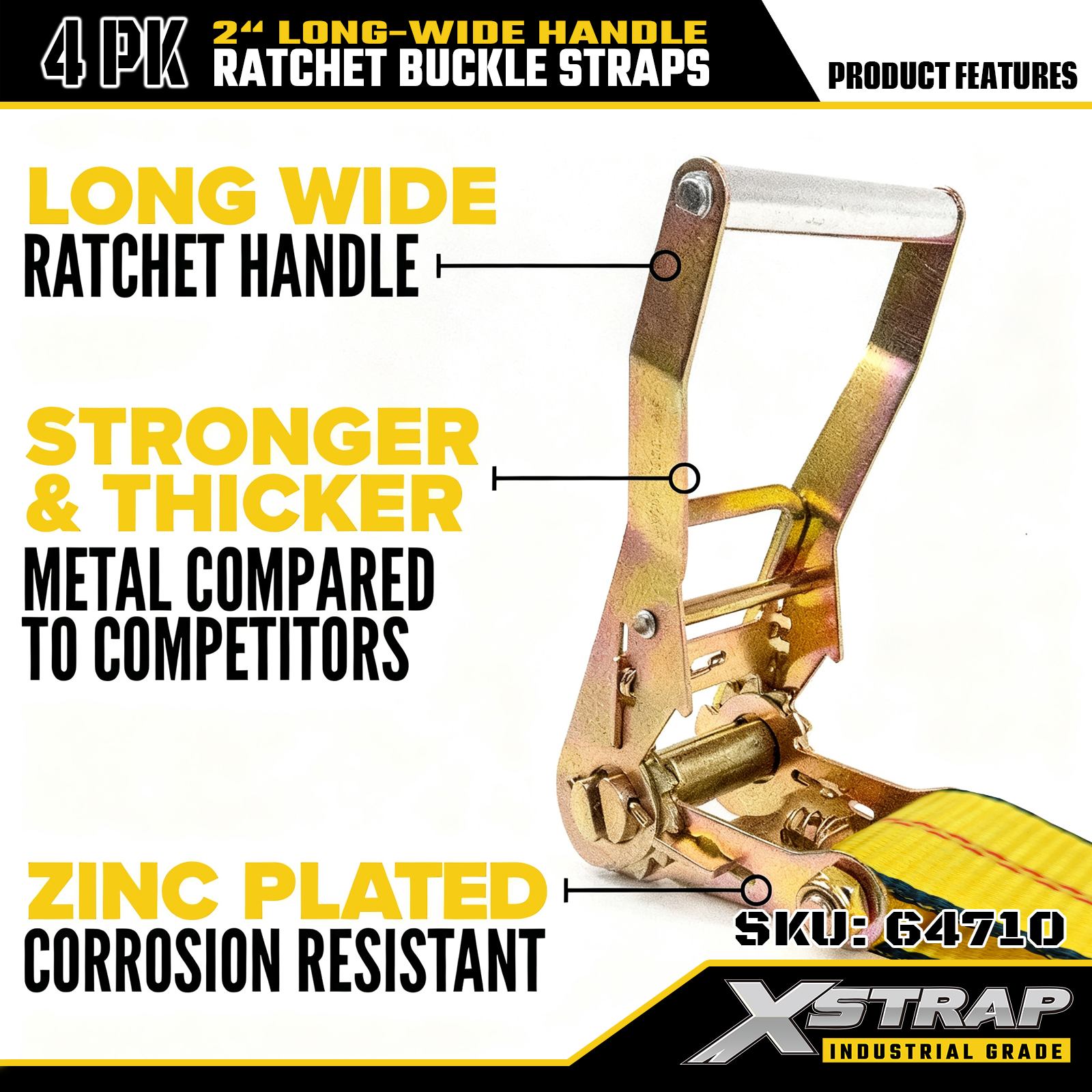

    • Extended Ratchet Handle: Long wide handle offers better grip and leverage, reducing effort when tightening heavy loads.
    • High Strength Webbing: 2-inch wide, 27-foot long polyester strap delivers 10,000 lbs break strength and 3,333 lbs working load limit.
    • Durable Construction: Premium polyester resists UV rays and abrasion, maintaining tension without stretching in harsh conditions.
    • Versatile Applications: Ideal for trucks, trailers, machinery, and construction equipment. A trusted solution for logistics and industrial professionals.



    5. Cooperation Policy:

    We are a professional manufacturer of tie down straps with over 20 years of experience. With factories in China and Cambodia and warehouses in the USA, we provide competitive pricing and fast delivery. We support wholesale and retail, and also offer OEM & ODM services to meet customized requirements.

Company Profile
Zhangjiagang SMK MFG. Co., Ltd.

Since its establishment in 2002, Zhangjiagang SMK MFG. Co., Ltd. has specialized in cargo securing and control products, with over 20 years of experience in R&D and global export. The company operates three factories and a large-scale warehouse center, forming an efficient international supply network.

SMK is China Xstrap 64710 2" 27ft Long Wide Handle Ratchet Buckle Straps with Wire Hooks Break Strength 10,000 lbs (4-Pack) Factory and Custom Xstrap 64710 2" 27ft Long Wide Handle Ratchet Buckle Straps with Wire Hooks Break Strength 10,000 lbs (4-Pack) Suppliers. The product range includes tie-down straps, bungee cords, tow straps, lifting slings, hoists, and 4x4 accessories, widely used in transportation, logistics, outdoor, and industrial sectors. Its in-house brand XSTRAP enjoys strong recognition in global markets, alongside flexible OEM/ODM services for customized needs.

With over 8,000 sqm of production space, SMK is equipped with advanced automated lines and in-house testing labs, ensuring full-process quality control from raw material to finished goods. The company is ISO 9001 certified, SMETA audited, and has passed C-TPAT anti-terrorism inspections and multiple GS and patent certifications.

Looking ahead, SMK will continue to upgrade its cargo control systems, stay close to customer needs, and provide high-quality, efficient products and services worldwide.
