1. Product Introduction

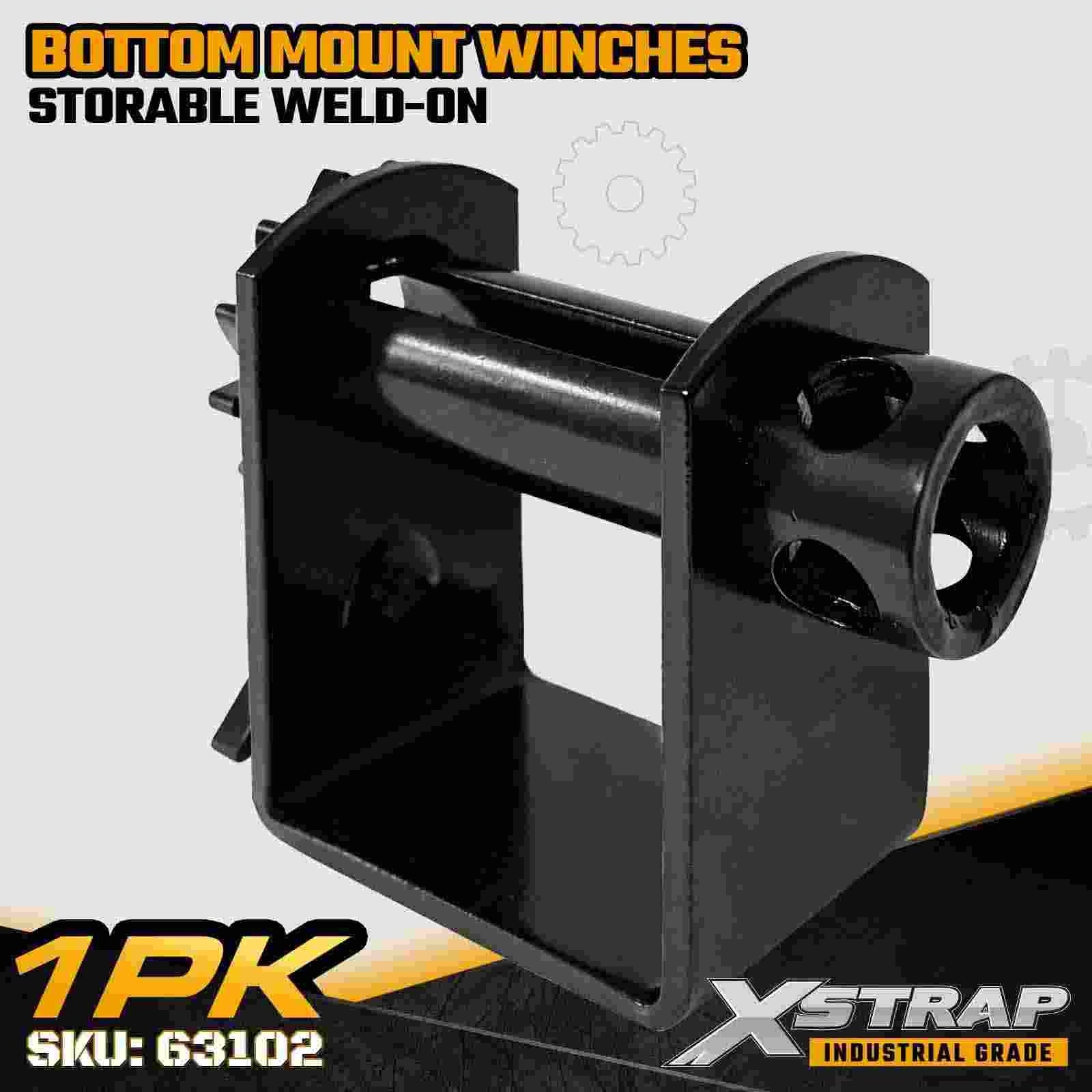

The Xstrap 63102 Bottom Mount Storable Weld-On Winch is engineered for operators who need a compact, space-efficient tie-down system without sacrificing strength. Featuring a lighter 7mm steel frame and a fold-away storable design, this winch offers reliable load control while minimizing interference along the trailer rail. With a 5,500 lbs Working Load Limit and 16,500 lbs Break Strength, it is built for securing machinery, construction materials, palletized freight, and other heavy cargo during long-distance hauling.

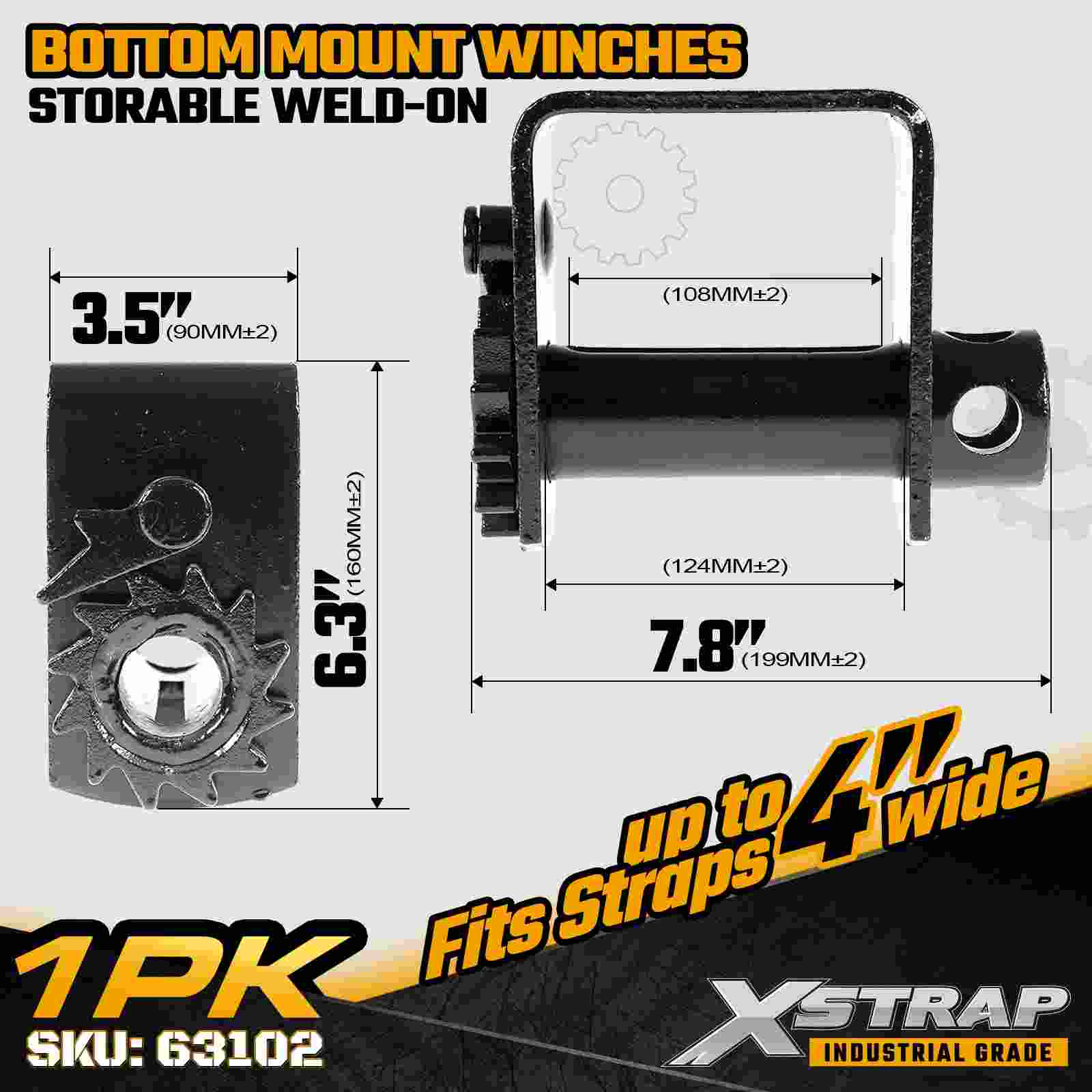

2. Product Specification
Product Name
Bottom Mount Storable Weld-On Winch
Mounting Style
Bottom Mount, Weld On
Capacity
5,500 lbs/16,500 lbs
Compatible Strap Size
4" Winch Straps
Material
Carbon Steel
Finish
Black Powder-Coated
Usage
Flatbeds, step decks, machinery transport, industrial freight
Packaging
1-Pack
3. About This Item
- Compact Storable Design for Cleaner Trailer Edges: The fold-away structure keeps the winch out of the way when not in use, reducing snag points and maintaining a clear working area along the trailer rail.
- Lightweight 7mm Steel Frame with High Strength: Engineered with a lighter 7mm carbon-steel body, this winch maintains excellent structural rigidity while reducing overall trailer weight.
- Permanent Weld-On Mount for Long-Term Stability: Designed for bottom-mount installation, the winch welds directly to the trailer frame, creating a secure and vibration-resistant tie-down point for heavy cargo.

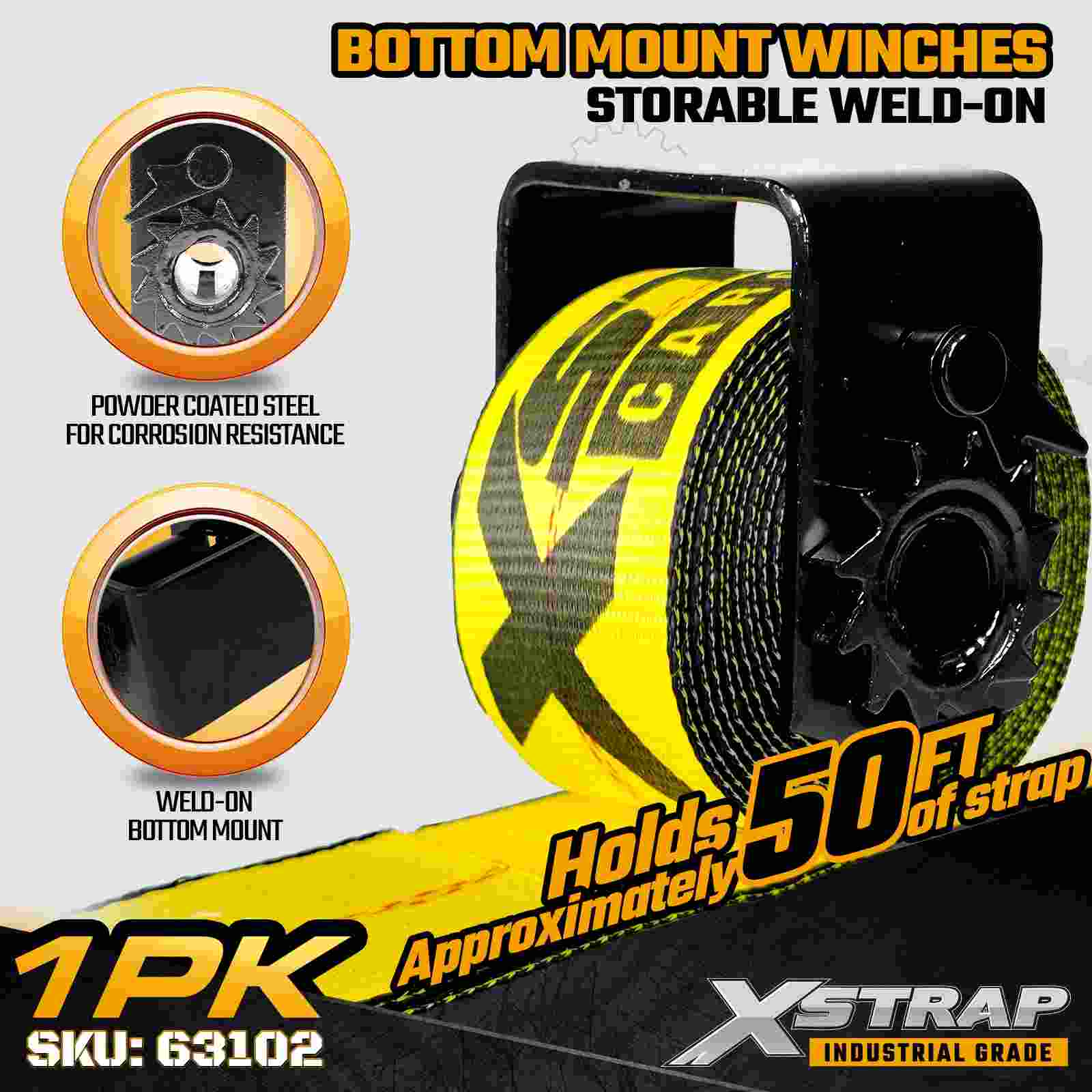

- Smooth Strap Feeding for Faster Load Securement: The drum geometry guides 4" straps evenly, helping operators tighten and release tension efficiently without strap bunching or feeding issues.

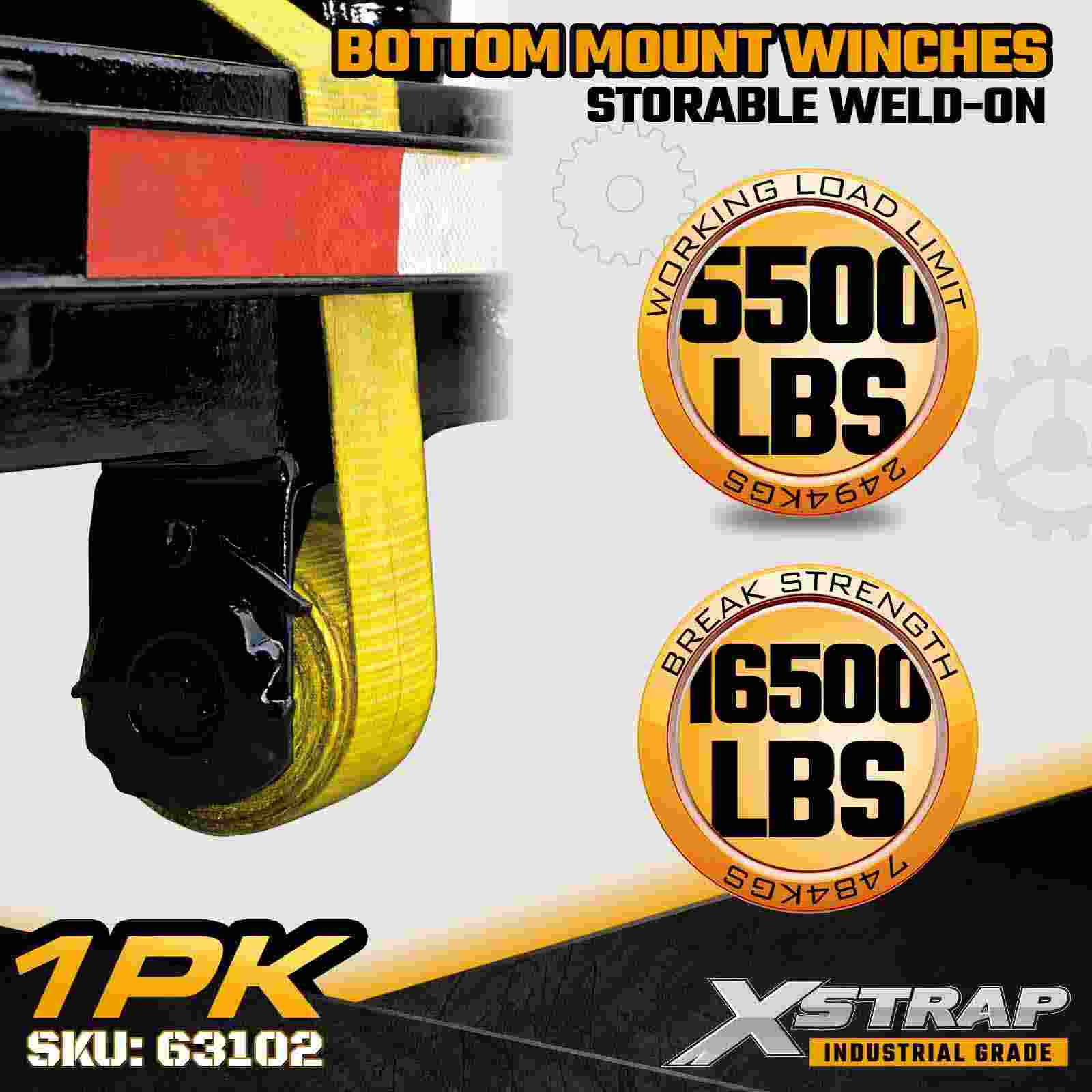

- Heavy-Duty Load Ratings for Professional Hauling: Rated at 5,500 lbs WLL and 16,500 lbs break strength, this winch provides reliable holding power for machinery, lumber, palletized freight, and other demanding loads.
-
-
