Custom 2 Inch Winch Straps Manufacturers

What is the Main Webbing Material for 2 Inch Winch Straps?

As a core product in cargo securing and transportation, the performance of a 2 Inch Winch Strap directly relates to road safety and cargo integrity. Selecting the correct webbing material is crucial in the industry.

Zhangjiagang SMK MFG. Co., Ltd., established in 2002, has specialized in cargo securing and control products for over two decades. Our in-house brand XSTRAP enjoys a strong reputation in global markets due to its high-quality products. We understand that high-performance webbing is the foundation of a quality winch strap. Therefore, Polyester Fiber remains SMK's preferred mainstream material for manufacturing 2-inch winch straps.

I. Why is Polyester Fiber the "Gold Standard" for 2 Inch Winch Straps?

Polyester Fiber (PET) stands out in the heavy-duty transport and logistics industry due to its unique chemical structure and physical properties, making it the "gold standard" for professional-grade 2-inch winch straps.

1. Extremely Low Elongation for Exceptional Stability

In heavy cargo securing, the elongation of the webbing is a critical measure of safety. Polyester fiber has an extremely low elongation rate, typically only 3% to 5% at its Working Load Limit (WLL).

• SMK Advantage: SMK-manufactured 2-inch winch straps use high-strength polyester fiber, minimizing cargo movement. This is particularly vital for long-haul transport scenarios requiring strict cargo stability and geometric integrity. This low-stretch characteristic ensures the strap remains taut during road bumps or sudden braking, effectively preventing load shifting and significantly reducing transit risks.

2. Excellent Strength-to-Weight Ratio

Polyester fiber boasts a superior strength-to-weight ratio, meaning it achieves a very high Break Strength without adding excessive bulk.

• Professional Standard: A standard 2-inch polyester winch strap's webbing break strength can easily reach or exceed 10,000 lbs (approx. 4,536 kg), with its corresponding Working Load Limit (WLL) typically set around 3,333 lbs, ensuring a safety factor of at least 3:1.
• SMK Quality Assurance: At Zhangjiagang SMK MFG. Co., Ltd.'s production facilities, which include over 8,000 sqm of space and in-house testing labs, we use advanced automated lines to test the tensile strength of every batch of polyester webbing. This guarantees that the WLL and break strength of all 2-inch winch straps meet or exceed international standards (e.g., WSTDA, EN, AS/NZS). Our comprehensive quality control, from raw material to finished goods, is the foundation of our ISO 9001 certification.

3. Superior Weather and Durability Resistance

Transportation environments are often complex and variable. The chemical stability of polyester fiber grants it unparalleled weather resistance.

• Moisture Resistance: Polyester fiber has extremely low moisture absorption. This means its strength is virtually unaffected, and it does not gain significant weight in wet or snowy conditions, maintaining consistent performance.
• UV Resistance: While all materials degrade from prolonged sun exposure, polyester fiber offers better resistance to ultraviolet (UV) light than materials like nylon, effectively extending the product's service life.
• Chemical Resistance: Polyester fiber exhibits strong resistance to common weak acids, weak alkalis, grease, and oil contaminants, which is crucial when dealing with road debris and potential chemical spills.

II. Professional Comparison of Polyester Fiber with Nylon and Polypropylene

In cargo securing products, besides polyester, common webbing materials include Nylon and Polypropylene.

• SMK Reason for Choice: Given that 2-inch winch straps are primarily used for heavy cargo securement on large flatbed trucks, stability and wet strength retention are paramount. Therefore, Zhangjiagang SMK MFG. Co., Ltd. firmly chooses polyester fiber, ensuring every strap provides the most reliable cargo safety control system for our global customers.

III. SMK's Commitment to Quality: From Production to Global Supply

We know that quality material must be paired with expert craftsmanship. As a manufacturer with three factories and a large-scale warehouse center, we offer flexible OEM/ODM services while upholding the following commitments:

1. Full-Process Quality Control: Through our in-house testing labs, strict quality control is implemented from the selection of polyester filaments to the final sewing and hardware installation. We are SMETA audited and have passed C-TPAT anti-terrorism inspections, ensuring supply chain compliance and security.
2. High-Standard Hardware Matching: 2-inch polyester webbing must be paired with end fittings (e.g., Flat Hook, Wire Hook) rated for the same WLL. SMK offers a variety of high-strength, corrosion-resistant hardware options (e.g., galvanized, powder-coated), ensuring the strap's System WLL is not compromised by any weak link.
3. Continuous Upgrades: SMK is committed to continually upgrading its cargo control systems, ensuring our XSTRAP brand products remain at the forefront of the industry, providing high-quality, efficient 2-inch winch strap solutions for logistics, outdoor, and industrial sectors worldwide.

What are the Common Types of End Fittings for 2 Inch Winch Straps?

In heavy-duty freight transport, the functionality of the 2 Inch Winch Strap relies not only on high-strength polyester webbing but also on its End Fittings—the "safety anchor" of the cargo securing system. The type, material, and strength of the end fitting directly determine the strap's compatibility with the flatbed or trailer anchor point and the final system's Working Load Limit (WLL).

Zhangjiagang SMK MFG. Co., Ltd. (SMK), with over two decades of experience in R&D and global export of cargo control products, deeply understands the importance of every component to overall system safety. Therefore, under the XSTRAP brand and our OEM/ODM customization services, we offer a range of high-quality, internationally compliant 2-inch winch strap end fittings to meet the complex and varied cargo securing needs of global customers.

I. Mainstream End Fitting Types for 2 Inch Winch Straps

Professional transportation selects hardware based on trailer structure, anchor point design, and cargo type. Here are the three most common end fittings for 2-inch winch straps:

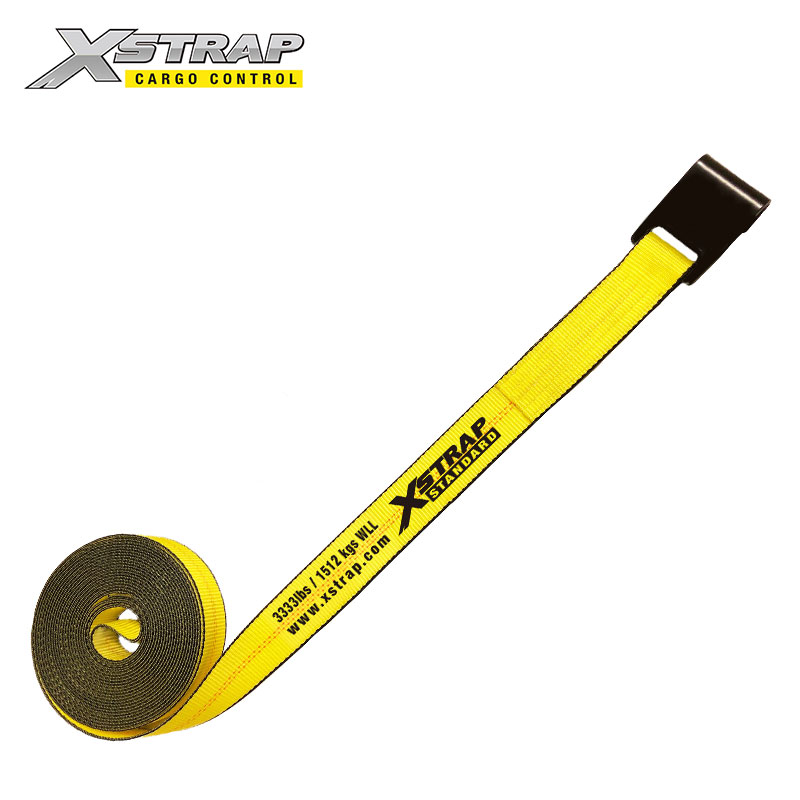

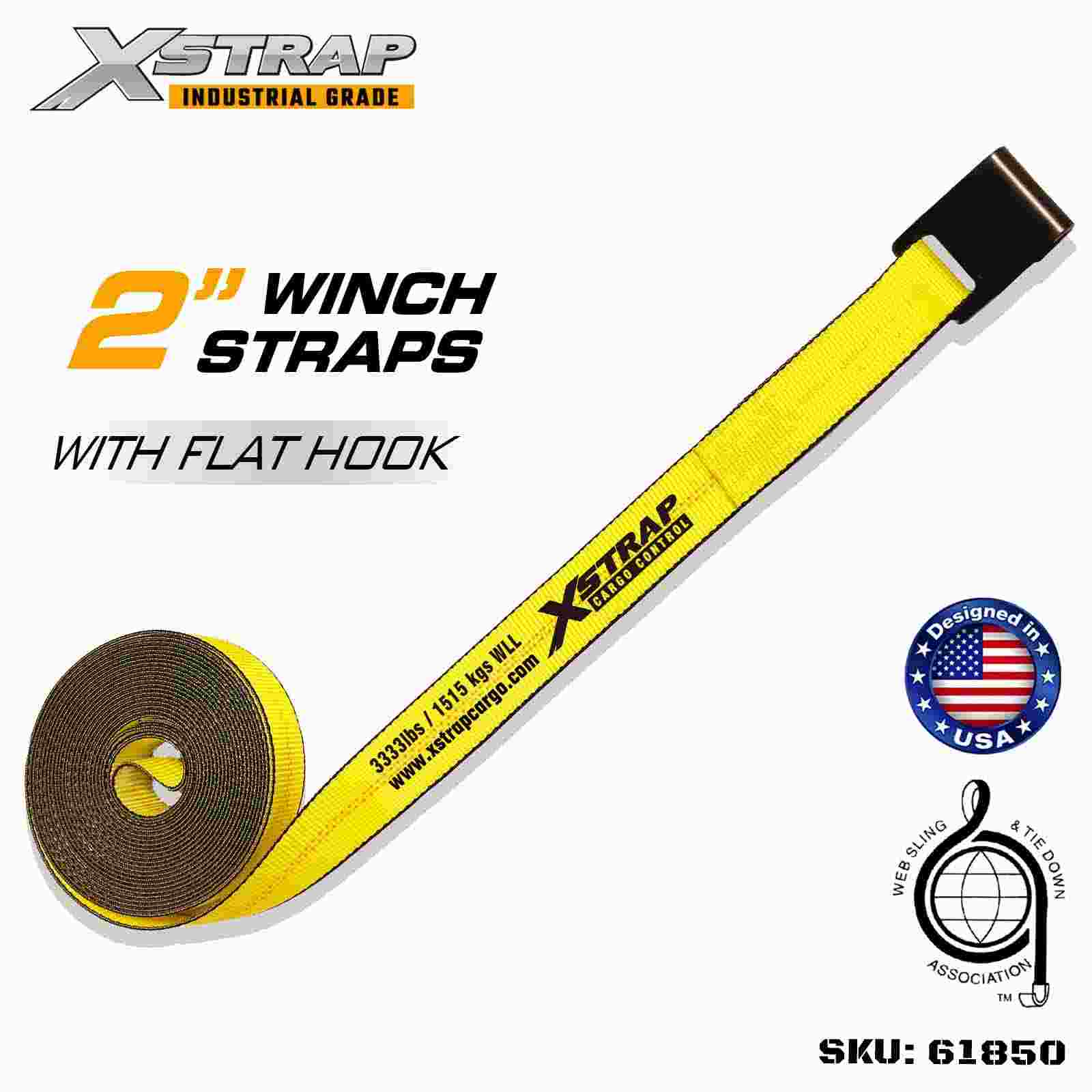

1. Flat Hook

The Flat Hook is the most common and standardized hardware in flatbed trucking, known as the "universal" anchor point for winch straps.

• Professional Features: The Flat Hook is designed with a wide, flat contact surface, often featuring a reinforced triangular brace or "wing" for added stability. It is specifically designed to hook onto the edge of the trailer's rub rail.
• SMK Manufacturing Advantage: SMK-manufactured Flat Hooks are stamped from high-strength steel and undergo professional galvanization or powder coating to ensure superior corrosion resistance and durability. In our in-house testing lab, Flat Hooks are subjected to rigorous tensile testing to ensure their WLL perfectly matches the strength of the 2-inch webbing, preventing weak points in the system.

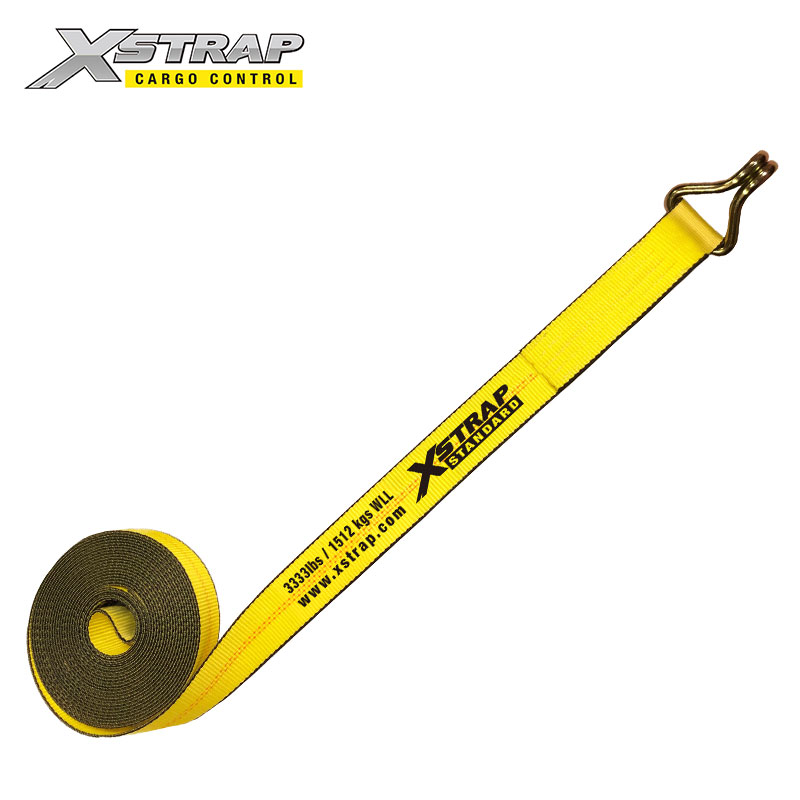

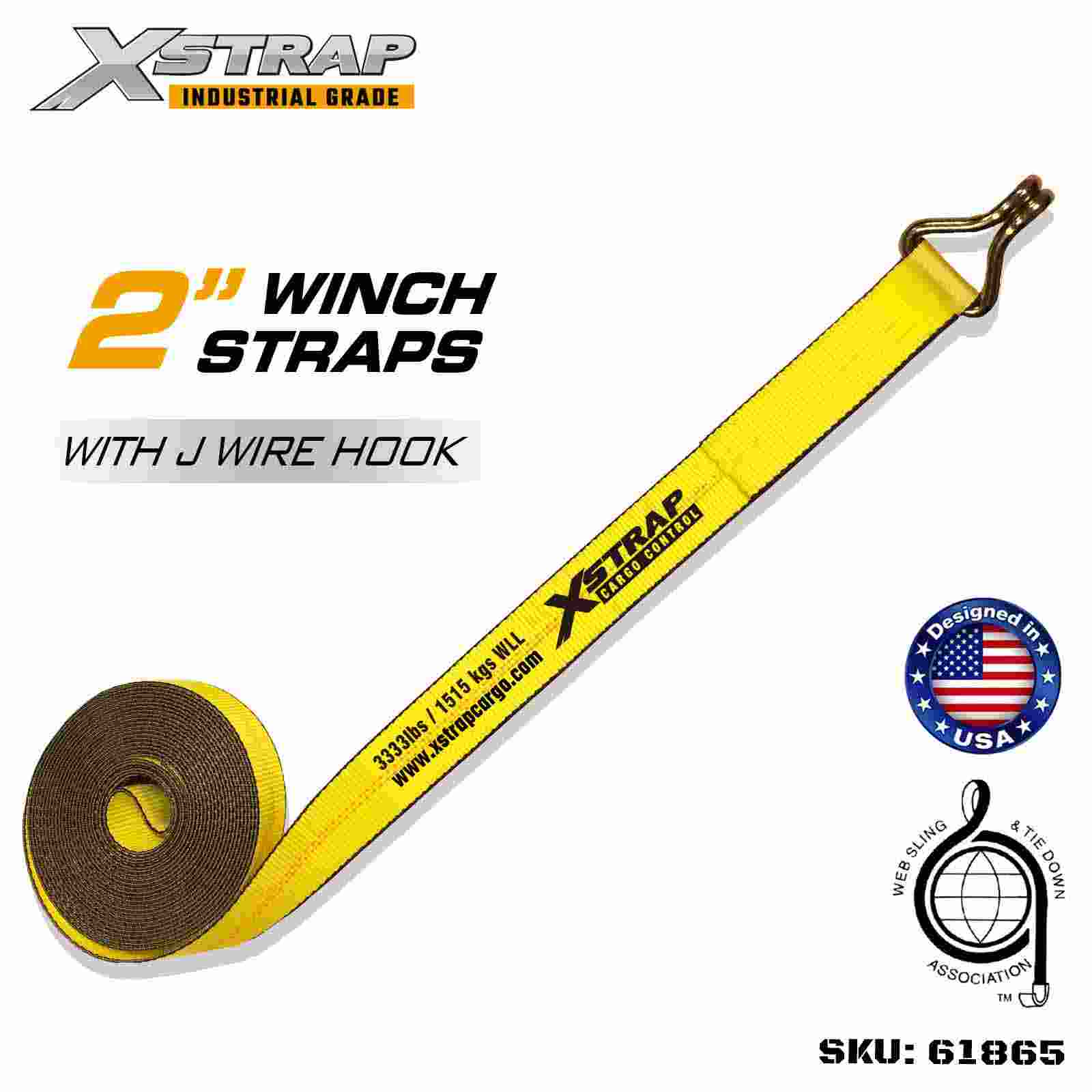

2. Wire Hook / J-Hook

The Wire Hook, or commonly referred to as the "J-Hook," is suitable for anchoring environments with slots, holes, or chain tie-down points.

• Professional Features: Wire Hooks are typically formed from heavy-duty steel wire, featuring a smaller tip and greater hook depth, allowing them to pass through small holes in the truck's side rails, D-Rings, or stake pockets.
• Application Scenario: Wire Hooks offer greater flexibility when the anchor points are not standard rub rails (e.g., certain specialized trailers or closed-van trucks).
• SMK Quality Control: We recognize the stress concentration issues at the bends of Wire Hooks. Therefore, Zhangjiagang SMK MFG. Co., Ltd. strictly controls the steel grade and heat treatment process of the hooks to maintain structural integrity under extreme loads, preventing failure due to bending or deformation. This dedication to quality is why SMK has obtained multiple GS and patent certifications.

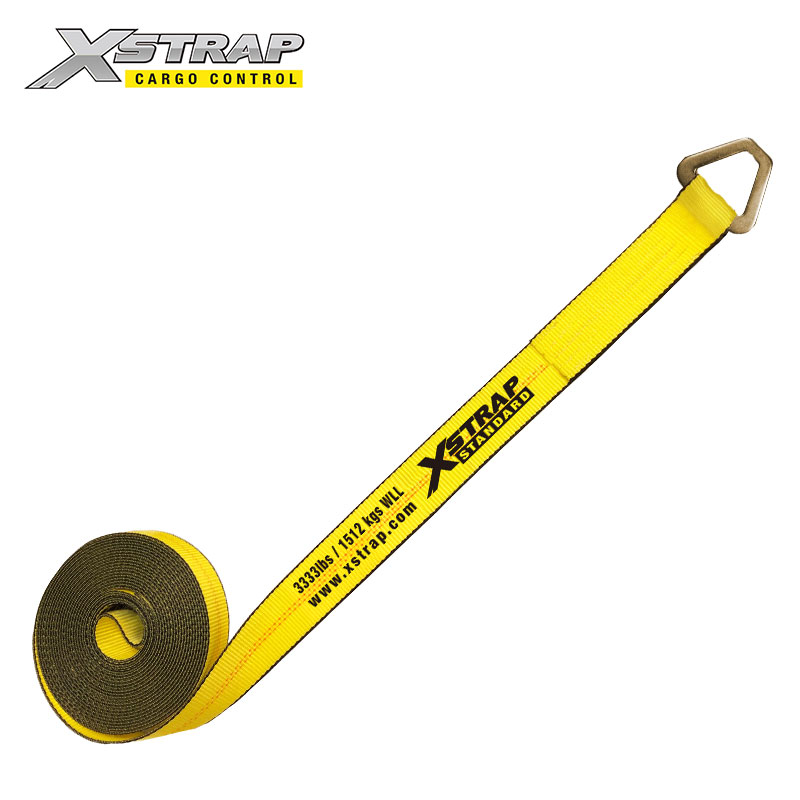

3. Delta Ring / D-Ring

Delta Rings and D-Rings are primarily used in situations requiring connection to other securing systems (like chains or slings) or specialized anchor points.

• Professional Features: These loop-style fittings provide a closed, high-strength connection point that can interface with J-hooks from chain binders or the truck's own D-Rings.
• Application Scenario: Commonly found in securing marine transport, construction equipment, or specialized heavy machinery.
• SMK Customization Service: Given that D-Rings and Delta Rings often involve customized lengths and unique mounting requirements, SMK, leveraging its strong R&D and production capabilities, flexibly provides OEM/ODM solutions tailored to specific customer WLL requirements. We ensure all hardware's welding or forging processes meet the highest standards, adapting to the complex demands of the global supply network.

II. Professional Considerations for Hardware Selection and SMK System Advantages

Choosing the correct end fitting is more than just "making it hook"; it is a specialized system engineering process.

1. Uniformity of Working Load Limit (WLL)

The WLL of a winch strap is a system-wide concept, determined by the weakest component among the webbing, hardware, and stitching.

• SMK's Core Value: SMK maintains full-process quality control, from webbing tension testing to hardware forging, executed rigorously across our three factories and in-house testing labs. We ensure the WLL of the 2-inch polyester webbing (typically 3333 lbs) perfectly matches the WLL of the selected hardware (typically 3333 lbs). This systematic strength guarantee is key to the recognition XSTRAP has earned in international markets.

2. Durability and Surface Treatment

Winch strap hardware is constantly exposed outdoors, making corrosion its main threat.

• SMK's Solution: We use industry-leading surface treatments, such as high-standard Hot-Dip Galvanizing or high-performance Powder Coating, to maximize resistance against salt spray, moisture, and road chemicals. This ensures the service life of the hardware matches that of the highly weather-resistant polyester webbing.

3. Innovation and Compliance

Zhangjiagang SMK MFG. Co., Ltd. continuously pursues technological upgrades to meet evolving customer needs and strict international regulations. Our design and manufacturing processes for all hardware comply with the ISO 9001 quality system. We have also passed the stringent C-TPAT anti-terrorism inspection, ensuring our products are not only safe and reliable but also compliant with global trade requirements.

In conclusion, whether for standard Flat Hooks, flexible Wire Hooks, or custom D-Rings, SMK provides the strongest and most reliable end fittings for your 2-inch winch straps. Our professional expertise and full-process quality control are your strongest guarantees for cargo transportation safety.

How to Determine if the Tension of a 2 Inch Winch Strap is Appropriate?

In heavy-duty freight transport, ensuring the precise Tension of cargo securement is vital for preventing load shifting, guaranteeing road safety, and maintaining regulatory compliance. Under-tensioning leads to load movement and danger, while Overtensioning can damage the cargo, the strap, and even the vehicle structure.

Zhangjiagang SMK MFG. Co., Ltd. (SMK), drawing on two decades of professional experience in cargo control products since 2002, knows that correct tensioning is essential for maximizing product longevity and ensuring safe transport. Our XSTRAP brand's high-quality 2-inch winch straps feature superior polyester fiber and high-strength hardware, but proper operation is necessary to realize their full potential.

I. Professional Tensioning Criteria: Combining Physical and Visual Assessment

Determining the appropriate tension of a 2-inch winch strap requires following a set of professional criteria, which must combine experience with physical characteristics:

1. Regulatory Basis and Friction

According to international regulations like the U.S. Federal Motor Carrier Safety Administration (FMCSA), the total securement force must resist specified acceleration (e.g., 0.8 times the cargo weight during forward braking). For cargo secured by maximizing Friction through winch straps, the goal of tensioning is to maximize the friction between the strap and the load, and between the load and the platform.

• Definition of Appropriate Tension: Appropriate tension means the webbing is snug against the cargo surface, eliminating all slack, and applying enough pressure to generate the necessary downward force to increase frictional resistance, but without exceeding the stress limits of the webbing or the cargo structure.

2. The "Two-Finger Test" and Webbing Deformation

This is the most practical and widely accepted initial inspection method in the industry:

• Procedure: After tensioning is complete, attempt to pinch the webbing over the cargo with two fingers (index and middle fingers).
• Appropriate Standard: If you can just barely pinch and slightly twist the webbing while feeling strong resistance, the tension is usually appropriate.
• Under-Tensioned: If you can easily pinch and twist the webbing, or if the webbing surface shows noticeable wavy slack, further tensioning is required.
• Over-Tensioned: If the webbing is pulled tight like a wire, completely unable to be pinched with two fingers, or if the edges of the strap have begun to curl or contract, it indicates possible overtensioning, and the tension should be slightly released.

3. Visual Assessment of Cargo and Platform Deformation

Observing the state of the cargo and the transport platform after tensioning is key to avoiding overtensioning:

• Inspect Cargo: For sensitive loads like cartons, wood planks, or hollow containers, overtensioning can cause the cargo surface to dent, deform the structure, or crush the goods. Appropriate tension should keep the strap tight against the load without changing the cargo's original geometry.
• Inspect Trailer/Platform: When securing large or heavy loads, overtensioning can cause unnecessary bending or deformation of the trailer's rub rails or the winch itself. If abnormal stress signs are observed on the trailer structure, tensioning should stop immediately.
• SMK Professional Advice: High-strength polyester winch straps manufactured by SMK (such as the XSTRAP series) have extremely low elongation, meaning they maintain high stability once tensioned. We advise customers to follow the principle of "check often, adjust little" to achieve the ideal tensioning state.

II. How SMK Ensures Products Facilitate Accurate Tensioning

A high-quality winch strap design helps the operator control tensioning force more accurately, mitigating the risks associated with operational errors.

1. Superior Low Elongation Characteristics

SMK manufactures its 2-inch winch straps using top-tier polyester fiber. The low elongation of polyester fiber (typically less than 5% at WLL) means:

• High Tensioning Efficiency: When the operator turns the winch bar, most of the force is used to increase friction and downward pressure, rather than just stretching the webbing.
• Strong Tension Retention: Once appropriate tension is achieved, the strap is better able to maintain that state during long-haul transport, reducing the frequency of re-tensioning due to "slack." This is crucial for improving transport efficiency and safety.

2. Synergistic Effect of High-Quality Winches and Hardware

Zhangjiagang SMK MFG. Co., Ltd. produces not only winch straps but also winches and hardware as part of our product line. Through full supply chain control, we ensure:

• Precise WLL Matching: We ensure the Working Load Limit (WLL) of the 2-inch webbing perfectly matches the WLL of the end fittings (e.g., Flat Hooks) and winches. This systematic design prevents any single component from becoming a weak link that might break when attempting to reach sufficient tensioning force.
• Durability: Our production facilities employ advanced automated lines and conduct full-process quality control. All products are ISO 9001 certified and have passed the rigorous SMETA audit and C-TPAT anti-terrorism inspection, guaranteeing the structural strength of the straps and hardware to withstand correct tensioning stresses.

III. Re-tensioning During Transport

Even if the initial tension is appropriate, professional transport operations require checking and re-tensioning during transit:

1. Initial Post-Travel Check: The strap should be stopped, checked, and re-tensioned after approximately 50 miles (80 kilometers) of travel. Cargo vibration and settling during the initial drive can cause a drop in initial tension.
2. Periodic Checks: Subsequent checks should be performed periodically according to regulations or at fixed intervals (e.g., every 3 hours or every 150 miles).

Choosing Zhangjiagang SMK MFG. Co., Ltd. means choosing a professional cargo control system. We provide not only high-quality XSTRAP 2-inch winch straps but also the expert knowledge and technical support necessary to ensure their safe and efficient use.

What Types of Damage Require Immediate Disposal of 2 Inch Winch Straps?

In the heavy-duty logistics and transport industry, the 2 Inch Winch Strap is considered the cargo's "safety lifeline." However, webbing is a consumable product that wears down with time, environment, and use. The key to professional operation is knowing when to identify and retire damaged winch straps to prevent catastrophic cargo securement failure accidents.

Zhangjiagang SMK MFG. Co., Ltd. (SMK), established in 2002, has focused on the R&D and manufacturing of high-quality cargo control products. We are committed to providing winch straps that meet the highest international safety standards, with our XSTRAP brand known for its exceptional durability. Yet, even the highest quality products must comply with stringent industry disposal standards.

I. The "Red Lines" for Webbing Body Disposal (Webbing Discard Criteria)

The webbing body is the core component that carries the main Working Load Limit (WLL). Any type of damage that significantly compromises its fiber integrity must lead to immediate disposal.

1. Cuts and Snags

This is the most common and dangerous type of damage.

• Disposal Standard: Any noticeable transverse or longitudinal cuts, tears, or punctures are grounds for immediate disposal.
• Professional Analysis: The strength of polyester webbing comes from the synergy of its thousands of fibers. Even a small transverse cut can rapidly extend under tension, causing the strap's Break Strength to drop by over 50% instantly.
• SMK Quality Advantage: SMK-manufactured winch straps use high-density weaving technology, offering a degree of resistance to everyday friction. However, we strongly recommend customers use our professional Corner Protectors/Edge Protectors to completely eliminate the risk of sharp edges damaging the strap.

2. Abrasion and Chafing

Continuous rubbing (e.g., against cargo, rub rails, or the ground) leads to wear and tear on the outer fibers.

• Disposal Standard: According to industry guidelines like those from WSTDA (Winch Strap Tie-Down Association), if abrasion results in more than 25% (one-quarter) of the thickness or width of the load-bearing fibers being chafed or broken, the strap must be disposed of. Even if the depth is minimal, but the abrasion is concentrated in one area, caution must be exercised.
• SMK Perspective: Zhangjiagang SMK MFG. Co., Ltd. uses specially treated polyester fiber to offer enhanced abrasion resistance. However, operators must regularly check the strap for wear, particularly the first winding area on the winch drum and the areas contacting the edges of the cargo.

3. Melting, Burning, and Chemical Damage

Polyester material is sensitive to heat and chemicals, and this type of damage is typically irreversible.

• Melting/Burning: Any sign of fiber melting, hardening, or charring caused by high-temperature friction (e.g., heat generated by rubbing against sharp objects at high speed) or external fire means the structural integrity of the winch strap has completely failed and it must be disposed of.
• Chemical Damage: Although polyester fiber offers some resistance to acids and alkalis, prolonged or high-concentration exposure to strong acids/alkalis will degrade the fibers, potentially visible as discoloration or a brittle texture. If contact with corrosive chemicals (e.g., battery acid) is confirmed, the strap must be isolated and immediately disposed of.

II. Disposal Standards for Hardware and Labels

Winch strap safety is a system engineering matter; the integrity of the hardware and identification tags is equally critical.

1. End Fitting Damage

The high-strength steel end fittings manufactured by Zhangjiagang SMK MFG. Co., Ltd., such as Flat Hooks, Wire Hooks, and D-Rings, undergo strict tensile testing and surface treatment during production.

• Disposal Standard: Any fitting showing twisting, permanent deformation (such as an opened hook mouth), cracks (especially in welded or bent areas), or severe corrosion (affecting the load-bearing area of the metal) is considered grounds for disposal. Minor paint chipping does not affect performance, but any structural damage will invalidate the entire securing system's WLL.

2. Missing or Damaged Working Load Limit (WLL) Tag

The WLL tag is the strap's "identity card," and its integrity is crucial for regulatory compliance.

• Disposal Standard: According to international transport regulations like FMCSA, if the 2-inch winch strap's WLL tag is lost, the WLL information on the tag is illegible, or the manufacturer's name cannot be identified, the strap is deemed "Out of Service" and must be immediately disposed of or retired.
• SMK's Professional Commitment: SMK adheres strictly to international standards (such as US DOT and European EN standards) for label production. Furthermore, we have passed the C-TPAT anti-terrorism inspection and obtained ISO 9001 certification in our production processes.
